STMicroelectronics VNH3SP30TR Motor Driver

The VNH3SP30TR from STMicroelectronics is a full-bridge motor driver designed for automotive and industrial applications. It is part of the VIPower M0-3 family, which is renowned for its ability to drive inductive loads with high current and high voltage capabilities. This motor driver is particularly suitable for driving DC motors, as it integrates a dual monolithic high-side driver and two low-side switches.

The VNH3SP30TR is capable of delivering up to 30 A of continuous current to the load with an operating voltage range from 5.5 V to 36 V. This makes it an excellent choice for a wide range of applications, including but not limited to, automotive fuel pumps, DC motor control, and power steering systems.

One of the key features of the VNH3SP30TR is its robust design, which includes protections against overvoltage, undervoltage, overtemperature, and overcurrent conditions. These protective measures ensure the longevity and reliability of the motor driver under harsh operating conditions. Additionally, the device includes diagnostic features that provide feedback on the status of the driver and the system, such as open load detection and thermal shutdown status, which are invaluable for system monitoring and maintenance.

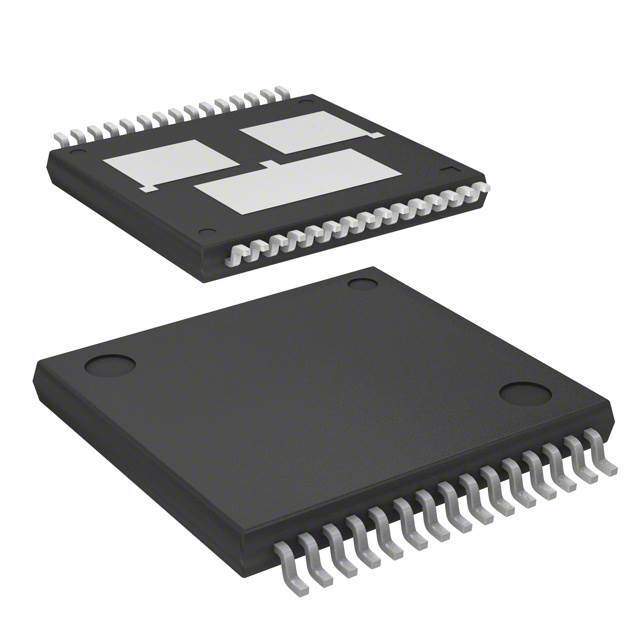

The VNH3SP30TR comes in a compact MultiPowerSO-30 package, which is designed to optimize the thermal performance and minimize the PCB space required. This package is lead-free, halogen-free, and compliant with RoHS regulations, aligning with the industry's move towards environmentally friendly components.

STMicroelectronics has equipped the VNH3SP30TR with an array of features to simplify design and enhance performance, including current sense, PWM operation up to 20 kHz, and the ability to parallel multiple devices for higher current applications. With its built-in clamp diodes, the VNH3SP30TR offers a cost-effective solution by reducing the number of external components required for operation.

Overall, the VNH3SP30TR motor driver is a highly integrated, efficient, and robust solution for high-power motor driving applications, backed by STMicroelectronics' reputation for quality and performance.
