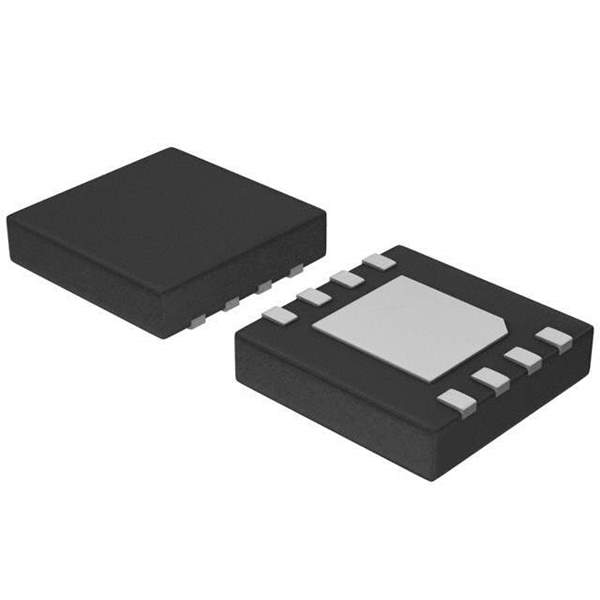

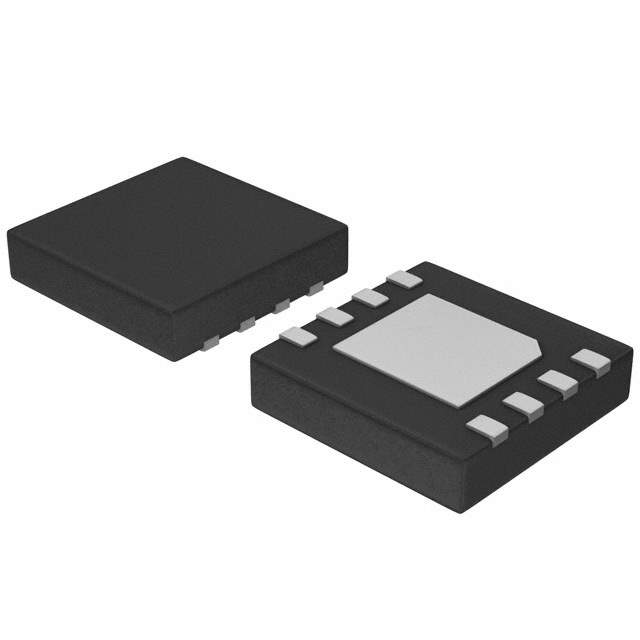

ON Semiconductor NCP3063MNTXG - Product Overview

The NCP3063MNTXG is a versatile and efficient DC-DC converter integrated circuit from ON Semiconductor, designed to cater to a broad range of power management applications. This compact, monolithic device is capable of stepping up, stepping down, or inverting input voltages, making it an ideal solution for multi-purpose power conversion in both consumer and industrial products.

Key Features

• Adjustable Output Voltage: The NCP3063MNTXG allows for a wide range of output voltages, which can be tailored to specific needs through external components.
• High Switching Frequency: With a switching frequency of up to 150 kHz, this IC provides a balance between efficiency and the size of external components, allowing for compact power supply designs.
• Current Mode Operation: This feature provides improved transient response and simplified loop compensation.
• Thermal Shutdown: The built-in thermal shutdown mechanism ensures the device operates within safe temperature limits, enhancing its reliability and longevity.
• Short-Circuit Protection: The IC includes protection against short circuits, which helps prevent damage to the device and the powered application in adverse conditions.

Applications

The NCP3063MNTXG is suited for a wide array of applications, including but not limited to:

• Portable Devices
• LED Lighting
• Battery Chargers
• Power Adapters
• DC Power Supply Modules

Package and Quality

ON Semiconductor has packaged the NCP3063MNTXG in a space-saving, Pb-free TSOP-6 package that is both RoHS and Green compliant. The device's quality is assured by ON Semiconductor's rigorous testing protocols, ensuring reliable performance in a wide range of environmental conditions.

Conclusion

With its flexibility, high efficiency, and robust protection features, the NCP3063MNTXG from ON Semiconductor stands out as a top choice for designers looking to create versatile and reliable power management systems. Its ease of use and compact size make it an excellent choice for a multitude of applications that require a dependable DC-DC conversion solution.
