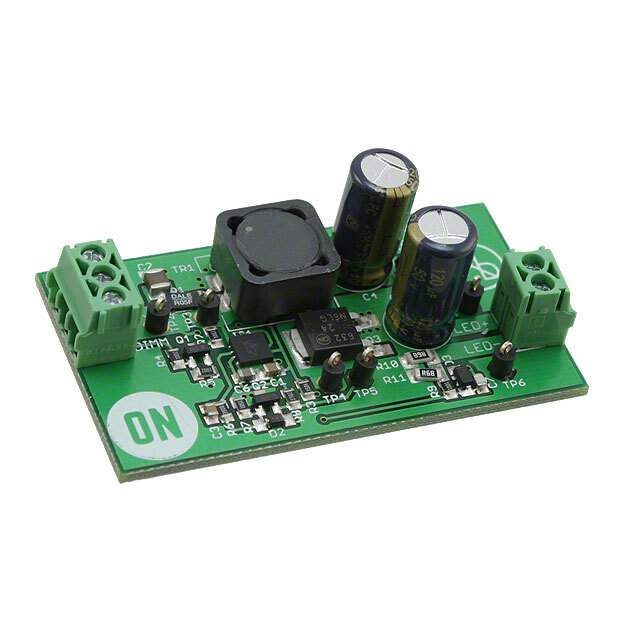

The ON Semiconductor NCP3065D2SLDGEVB Evaluation Board is a versatile platform designed for testing and evaluating the capabilities of the NCP3065 Buck/Boost/Inverting Switching Regulator. This evaluation board serves as an exemplary tool for engineers and designers to explore the functionalities and performance of the NCP3065 regulator in various circuit configurations.

Key Features

• Versatile Voltage Options: The NCP3065D2SLDGEVB can be configured to operate in Buck, Boost, or Inverting modes, providing a wide range of output voltage options suitable for diverse applications.
• Adjustable Output: Users can adjust the output voltage and current through external components, allowing for fine-tuning to meet specific design requirements.
• High Efficiency: The NCP3065 regulator is designed for high efficiency, which is critical for battery-operated devices and energy-sensitive applications.
• Thermal Protection: The board includes built-in thermal shutdown and current limit features, ensuring safe operation and protection of the regulator and connected components.
• Compact Design: The evaluation board's small footprint allows for easy integration into existing or prototype systems without significant space constraints.

Applications

The NCP3065D2SLDGEVB is suited for a variety of applications, including, but not limited to, portable power, LED drivers, battery chargers, and regulated power supplies. Its flexibility makes it an ideal choice for both experimentation and final product development in power management solutions.

Technical Specifications

The evaluation board supports input voltages ranging from 3V to 40V and offers an adjustable output voltage that can be set through external resistors. It is capable of delivering up to 1.5A of output current, depending on the mode of operation and external components used.

Design Support

ON Semiconductor provides comprehensive design support for the NCP3065D2SLDGEVB, including detailed datasheets, application notes, and reference designs. This ensures that designers can fully leverage the capabilities of the evaluation board and the NCP3065 regulator for their specific needs.
