ON Semiconductor's NL17SZ04XV5T2 Inverter

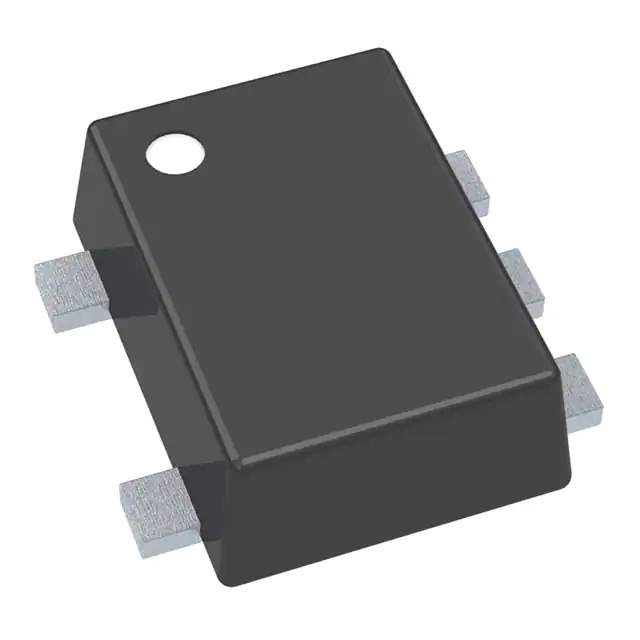

The NL17SZ04XV5T2 from ON Semiconductor is a high-performance single inverter designed to meet the needs of a wide range of applications. This device is part of the 1.65 V to 5.5 V HC/UHCMOS logic family, making it versatile for interfacing with other logic levels in mixed-voltage systems. Its compact SOT-553 package makes it ideal for space-constrained applications.

Key Features

• High-Speed Operation: The NL17SZ04XV5T2 provides a propagation delay (tpd) of only 4.5 ns at Vcc = 5V, making it suitable for high-speed signal processing applications.
• Wide Operating Voltage Range: This inverter operates over a broad voltage range from 1.65V to 5.5V, providing design flexibility for various logic-level requirements.
• Low Power Consumption: It features a low static power consumption with a typical ICC of 1 µA, contributing to the energy efficiency of the overall design.
• High Output Drive: With an output drive capability of ±24 mA at 3.3V, this device can drive multiple loads or interface with other logic families effectively.
• Overvoltage Tolerance: Inputs can tolerate voltages up to 5.5V, regardless of the operating voltage, offering protection against incorrect or fluctuating voltages.

Applications

The NL17SZ04XV5T2 is ideal for use in a variety of applications, including:

• Portable electronics
• Microcontroller interfacing
• Signal buffering
• Logic level translation
• Wave shaping
• Timing circuits

Product Quality and Environmental Compliance

ON Semiconductor is committed to providing quality products. The NL17SZ04XV5T2 is no exception, with adherence to stringent quality control standards. Additionally, this product is compliant with RoHS directives, ensuring that it meets global environmental standards for hazardous substances.

In summary, the NL17SZ04XV5T2 from ON Semiconductor is a versatile, efficient, and reliable solution for a wide range of digital logic applications. Its fast operation, low power consumption, and wide voltage compatibility make it an excellent choice for designers looking to optimize their system's performance and power usage.
