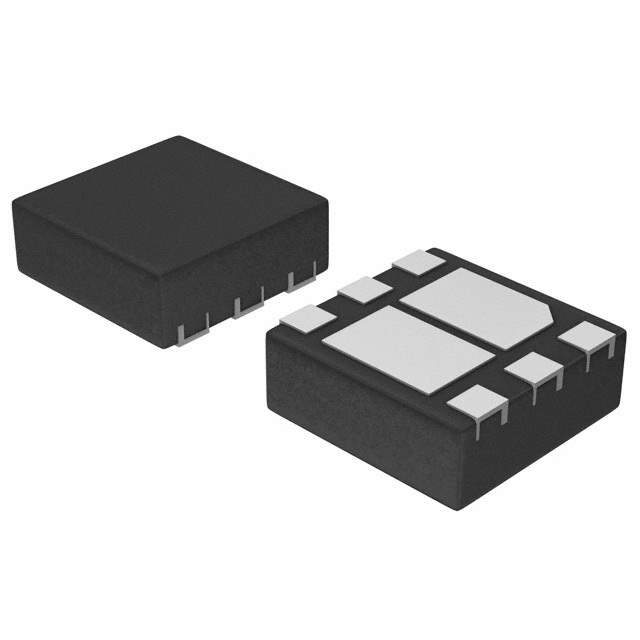

ON Semiconductor NSS60100DMTTBG Overview

The NSS60100DMTTBG from ON Semiconductor is a robust, high-performance Schottky diode designed to meet the needs of a wide range of applications. This diode is characterized by its low forward voltage drop and high surge current capability, making it an ideal choice for high-efficiency power management systems.

Key Features

• High Current Capacity: With a maximum continuous forward current of 60 A, this diode can handle high current requirements, making it suitable for power supply applications.
• Low Forward Voltage: The NSS60100DMTTBG offers a low forward voltage drop, typically around 0.85 V, which translates to reduced power loss and improved efficiency in your circuit.
• High Surge Capability: This device is capable of withstanding surge currents, ensuring reliability and robustness in applications where transient conditions are common.
• Power Dissipation: Rated at 3.0 W, this diode is designed to dissipate the heat generated during operation effectively, maintaining stability and prolonging the life of the product.
• Operating Temperature Range: With an operating junction temperature range of -55°C to +150°C, the NSS60100DMTTBG is suitable for use in extreme environmental conditions.

Applications

The NSS60100DMTTBG is versatile and can be used in various applications, including:

• Switching power supplies
• Converters
• Free-wheeling diodes
• Reverse battery protection
• Automotive applications
• Power management in portable devices

Reliability and Quality

ON Semiconductor is known for its commitment to quality and reliability, and the NSS60100DMTTBG is no exception. It is manufactured to stringent standards, ensuring consistent performance and reliability for critical applications. Its robust construction is designed to withstand harsh conditions and provide a long operational life.

Package and Environmental Compliance

The NSS60100DMTTBG comes in a DPAK (TO-252) package, which is compact and offers excellent power density for its size. Additionally, it complies with RoHS and is free from lead and other environmentally harmful substances, aligning with global environmental regulations and standards.

Overall, the NSS60100DMTTBG from ON Semiconductor is a high-quality Schottky diode that offers efficiency, reliability, and versatility for engineers and designers working on advanced power management systems.
