Same model may have multiple batches, images only for reference.

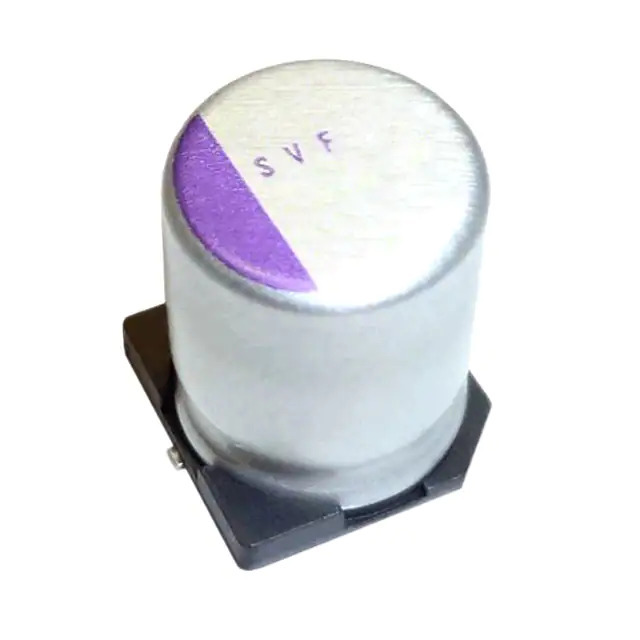

25SVF47M Panasonic
Same model may have multiple batches, images only for reference.

25SVF47M

Part No 25SVF47M
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 47UF 20% 25V SMD / 47 µF 25 V Aluminum - Polymer Capacitors Radial, Can - SMD 30mOhm 1000 Hrs @ 125°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum - Polymer Capacitors
Mfr Panasonic Electronic Components
Series OS-CON™, SVF
Package Tape & Reel
Product Status Active
Type Polymer
Capacitance 47 µF
Tolerance ±20%
Voltage - Rated 25 V
ESR (Equivalent Series Resistance) 30mOhm
Lifetime @ Temp. 1000 Hrs @ 125°C
Temperature Range - Operating -55°C ~ 125°C
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 44 mA @ 120 Hz
Ripple Current @ High Frequency 880 mA @ 100 kHz
Lead Spacing -
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.236" (6.00mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Base Product Number 25SVF
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1359567-25SVF47M
Ultra Librarian 3D Model Ultra Librarian 25SVF47M CAD Model

Description

The 25SVF47M is an aluminum polymer capacitor from Panasonic Electronic Components.

  • Series: OS-CON™, SVF
  • Capacitance: 47μF
  • Voltage Rating: 25V
  • Tolerance: ±20%
  • ESR: 30mOhm
  • Lifetime: 1000 Hours @ 125°C
  • Application: General Purpose
  • Ripple Current (Low Frequency): 44mA @ 120 Hz
  • Ripple Current (High Frequency): 880mA @ 100 kHz
  • Size: 0.248" diameter (6.30mm)
  • Height: 0.236" (6.00mm)
  • Mounting Type: Surface Mount
  • Surface Mount Land Size: 0.260" L x 0.260" W (6.60mm x 6.60mm)
  • REACH: Unaffected
  • ECCN: EAR99
