Products specifications

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Capacitance 330μF
Tolerance ±20%
Voltage Rating 4V
Type Molded
ESR 12 mOhm
Temperature Range - Operating -55°C to 105°C
Lifetime @ Temp. 2000 Hrs @ 105°C
Mounting SMD (SMT)
Dimension 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) 0.118" (3.00mm)
Manufacturer Size Code D3L
Features General Purpose
Win Source Part Number 058097-4TPF330ML
Popularity Medium
Supply and Demand Status Balance
Quantity per package 2,500
Ultra Librarian 3D Model Ultra Librarian 4TPF330ML CAD Model

Description

Product Overview

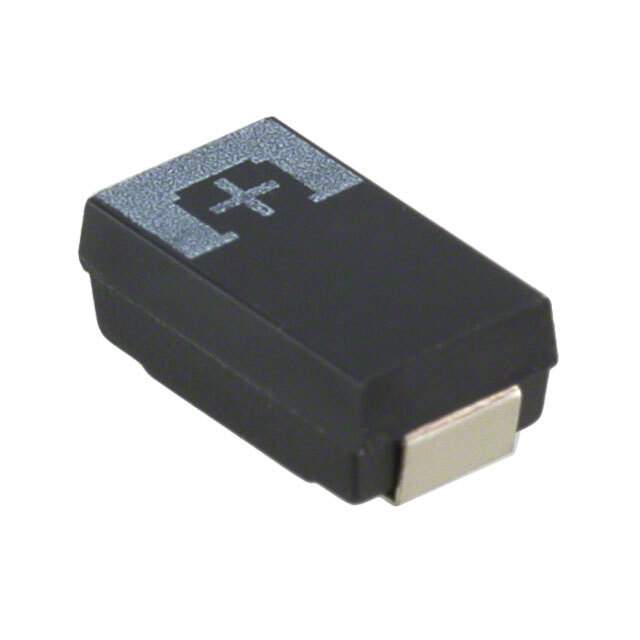

The 4TPF330ML is a reliable tantalum polymer capacitor tailored for use in high-stress, high-reliability applications. It combines low ESR and high capacitance, ensuring optimal performance.

Features & Benefits

  • Effective Capacitance: 330μF for energy-efficient operation.
  • Low ESR: Provides superior performance in high-frequency environments.
  • Wide Operating Temperatures: Functional between -55°C and +105°C.
  • Compact Design: Ideal for space-limited applications.

Applications & Projects

  • DC-DC Converters
  • Power Management Systems
  • Industrial Automation
  • Embedded Systems
  • Wearable Technology

With superior endurance and exceptional quality, the 4TPF330ML offers unmatched reliability for a range of industrial and consumer applications.
