Same model may have multiple batches, images only for reference.

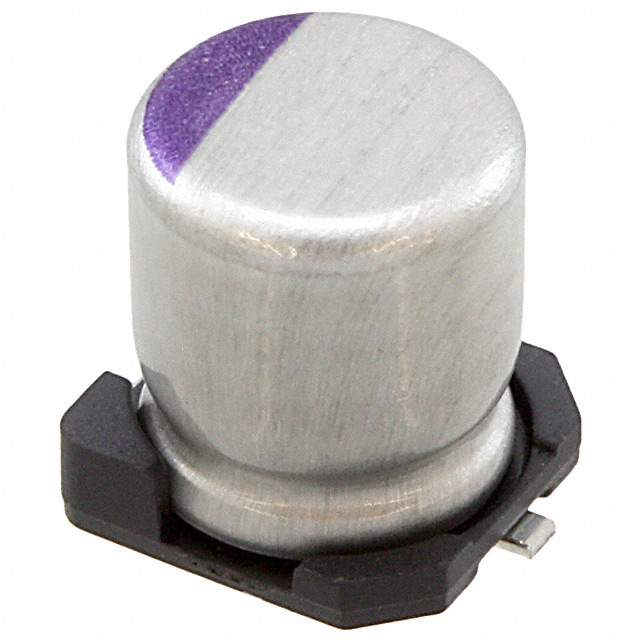

6SVPC100M Real Image
Same model may have multiple batches, images only for reference.

6SVPC100M

Part No 6SVPC100M
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 100UF 20% 6.3V SMD
Datasheet
6SVPC100M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Series OS-CON, SVPC
Type Polymer
Capacitance 100μF
Tolerance ±20%
Voltage Rating 6.3V
ESR (Equivalent Series Resistance) 30 mOhm
Lifetime @ Temp. 2000 Hrs @ 105°C
Operating Temperature Range -55°C ~ 105°C
Ripple Current - Low Frequency 107.5mA @ 120Hz
Ripple Current - High Frequency 2.15A @ 100kHz
Dimension 0.197" Dia (5.00mm)
Height - Seated (Maximum) 0.236" (6.00mm)
Surface Mount Land Size 0.209" L x 0.209" W (5.30mm x 5.30mm)
Mounting SMD
Package Radial, Can - SMD
Win Source Part Number 764489-6SVPC100M
Popularity Medium
Supply and Demand Status Limited
Quantity per package 1,500
Family Name SVPC
Introduction Date October 02, 2006
ECCN EAR99
Country of Origin Japan
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian 6SVPC100M CAD Model

Description

The SVPC100M is a 6.3V, 100μF polymer capacitor from the OS-CON, SVPC series manufactured by Panasonic Electronic Components.

  • Win Source Part Number: 764489
  • Tolerance: ±20%
  • ESR: 30 mOhm
  • Lifetime: 2000 Hrs @ 105°C
  • Ripple Current - Low Frequency: 107.5mA @ 120Hz
  • Ripple Current - High Frequency: 2.15A @ 100kHz
  • Diameter: 0.197" (5.00mm)
  • Height: 0.236" (6.00mm)
