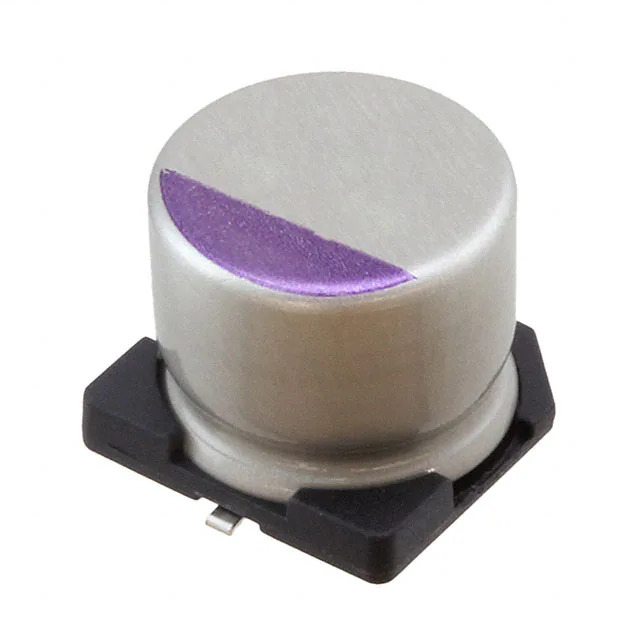

80SXV27MX Panasonic
Same model may have multiple batches, images only for reference.

80SXV27MX

Part No 80SXV27MX
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 27UF 20% 80V SMD / 27 µF 80 V Aluminum - Polymer Capacitors Radial, Can - SMD 55mOhm 1000 Hrs @ 125°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum - Polymer Capacitors
Mfr Panasonic Electronic Components
Series OS-CON™, SXV
Package Tape & Reel
Product Status Active
Type Polymer
Capacitance 27 µF
Tolerance ±20%
Voltage - Rated 80 V
ESR (Equivalent Series Resistance) 55mOhm
Lifetime @ Temp. 1000 Hrs @ 125°C
Temperature Range - Operating -55°C ~ 125°C
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 33 mA @ 120 Hz
Ripple Current @ High Frequency 660 mA @ 100 kHz
Lead Spacing -
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.315" (8.00mm)
Surface Mount Land Size 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Base Product Number 80SXV
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1359530-80SXV27MX
Ultra Librarian 3D Model Ultra Librarian 80SXV27MX CAD Model

Description

The 1185948 is a polymer capacitor from Panasonic Electronic Components. It belongs to the OS-CON™ SXV series and has a capacitance of 27 µF with a voltage rating of 80 V.

  • Series: OS-CON™ SXV
  • Capacitance: 27 µF
  • Voltage Rating: 80 V
  • Application: General Purpose
  • Temperature Range: -55°C to 125°C
  • ESR: 55 mOhm
  • Ripple Current (Low Frequency): 33 mA @ 120 Hz
  • Ripple Current (High Frequency): 660 mA @ 100 kHz
  • Package: Radial, Can
  • Mounting: Surface Mount
  • Diameter: 0.394 inches (10.00 mm)
  • Height: 0.315 inches (8.00 mm)
  • Surface Mount Land Size: 0.406 inches L x 0.406 inches W (10.30 mm x 10.30 mm)
  • Lifetime: 1000 hours @ 125°C
  • REACH Status: Unaffected
  • Product Status: Active
  • Packaging: Tape and Reel
