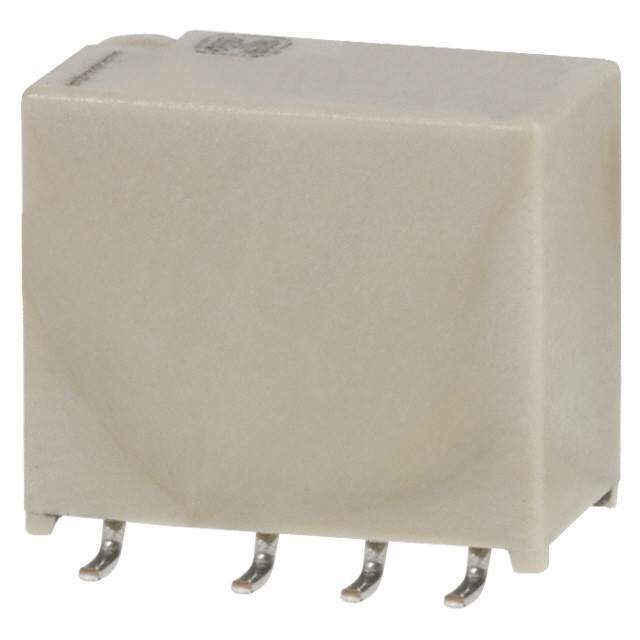

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Tube/Rail
Status Active
Relay Type Telecom
Coil Type Non Latching
Coil Current 31mA
Coil Voltage 4.5VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 1A
Switching Voltage 125VAC, 110VDC - Max
Turn On Voltage (Max) 3.38 VDC
Turn Off Voltage (Min) 0.45 VDC
Operate Time 4ms
Release Time 4ms
Mounting SMD (SMT)
Termination Style Gull Wing
Coil Power 140 mW
Coil Resistance 145 Ohms
Temperature Range - Operating -40°C to 85°C
Win Source Part Number 009575-AGN200A4H
Popularity Medium
Supply and Demand Status Limited
Quantity per package 50
Ultra Librarian 3D Model Ultra Librarian AGN200A4H CAD Model

Description

AGN200A4H - High Performance Relay

The AGN200A4H is designed for robust applications requiring high performance. This relay is ideal for secure and stable electronic connections.

    Applications:
  • Automotive Electronics
  • Power Management Systems
  • Medical Equipment
  • Consumer Electronics
    Features and Benefits:
  • High switching capacity accommodating a variety of circuit demands.
  • Enhanced contact reliability for longevity.
  • Broad operating temperature range ensuring durability.
  • Environmentally friendly materials used.

Engineered for excellence, the AGN200A4H offers reliability where it counts the most.
