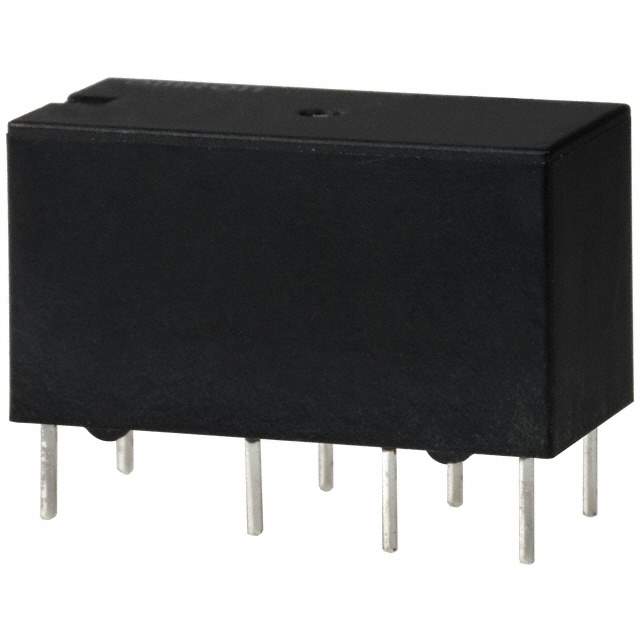

G5V-2-DC3 Real Image
Same model may have multiple batches, images only for reference.

G5V-2-DC3

Part No G5V-2-DC3
Manufacturer Omron
Catalog Signal Relays, Up to 2 Amps
Description RELAY GENERAL PURPOSE DPDT 2A 3V
Datasheet
G5V-2-DC3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Omron Electronics Inc-EMC Div
Series G5V-2
Packaging Tube
Relay Type General
Coil Type Non Latching
Coil Current 166.7mA
Coil Voltage 3VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 2A
Switching Voltage 125VAC, 125VDC - Max
Turn On Voltage (Maximum) 2.25 VDC
Turn Off Voltage (Minimum) 0.15 VDC
Operate Time 7ms
Release Time 3ms
Features Sealed - Fully
Mounting Style Through Hole
Termination Style PC Pin
Contact Material Silver (Ag), Gold (Au)
Coil Power 500 mW
Coil Resistance 18 Ohms
Operating Temperature Range -25°C ~ 65°C
Win Source Part Number 792660-G5V-2-DC3
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian G5V-2-DC3 CAD Model

Description

The Omron G5V-2-DC3 is a high-quality DPDT (2 Form C) general relay with a fully sealed feature.

  • Packaging: Tube
  • Termination Style: PC Pin
  • Mounting Type: Through Hole
  • Coil Voltage: 3VDC
  • Coil Resistance: 18 Ohms
  • Contact Rating Current: 2A
  • Switching Voltage: 125VAC/125VDC
  • Operating Temperature Range: -25°C ~ 65°C
  • Operate Time: 7ms
  • Release Time: 3ms
