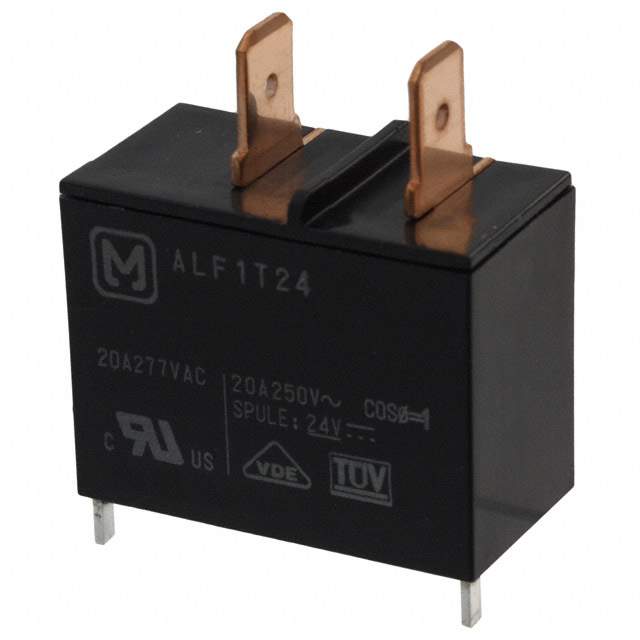

ALF1T24 Real Image
Same model may have multiple batches, images only for reference.

ALF1T24

Part No ALF1T24
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description 20A Power Relay For Home appliances | RELAY GEN PURPOSE SPST 20A 24V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Bulk
Mounting Style Through Hole
Coil Voltage 24VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 20A
Switching Voltage 250VAC - Max
Coil Current 37.5mA
Coil Type Non Latching
Termination Style PC Pin, Quick Connect - 0.250" (6.3mm)
Must Operate Voltage 16.8 VDC
Must Release Voltage 2.4 VDC
Operate Time 20ms
Release Time 15ms
Temperature Range - Operating -40°C ~ 60°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 640 Ohms
Manufacturer Pack Quantity 50
MSL Level 1 (Unlimited)
Win Source Part Number 1143330-ALF1T24
Manufacturer Homepage 0
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian ALF1T24 CAD Model

Description

The ALF1T24 is a general purpose relay from Panasonic Electric Works.

  • Manufacturer: Panasonic Electric Works
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Mounting: Through-hole
  • Contact Form: SPST-NO (1 Form A)
  • Contact Material: Silver tin oxide (AgSnO)
  • Coil Voltage: 24VDC
  • Contact Rating: 20A
  • Switching Voltage: 250VAC
  • Applications: Power supplies, motor control, and other applications
  • Temperature Range: -40°C to 60°C
  • Release Time: 15ms
