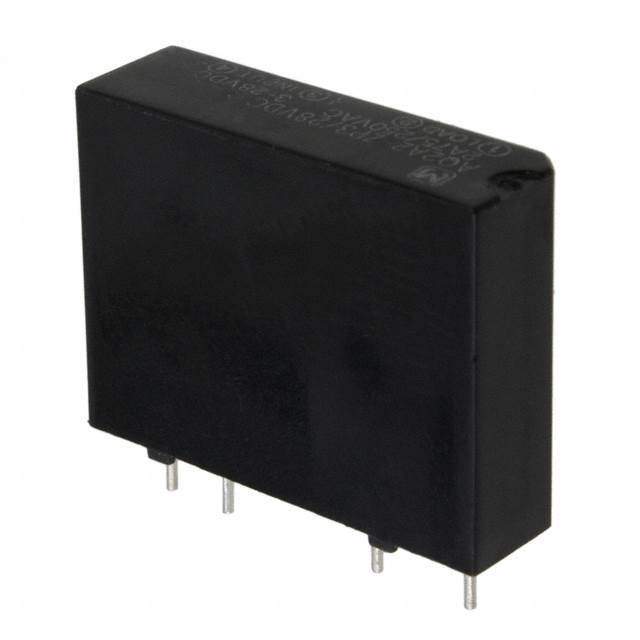

AQ2A2-ZP3/28VDC Real Image
Same model may have multiple batches, images only for reference.

AQ2A2-ZP3/28VDC

Part No AQ2A2-ZP3/28VDC
Manufacturer Panasonic
Catalog Solid State Relays
Description SSR RELAY SPST-NO 2A 75-250V / Solid State SPST-NO (1 Form A) 4-SIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr Panasonic Electric Works
Series AQ1
Package Bulk
Product Status Obsolete
Mounting Type Through Hole
Circuit SPST-NO (1 Form A)
Output Type AC, Zero Cross
Voltage - Input 3 ~ 28VDC
Voltage - Load 75 V ~ 250 V
Load Current 2 A
Termination Style PC Pin
Package / Case 4-SIP
Base Product Number AQ2A2
Standard Package 20
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 1338070-AQ2A2-ZP3/28VDC
Ultra Librarian 3D Model Ultra Librarian AQ2A2-ZP3/28VDC CAD Model

Description

The Panasonic Electric Works AQ2A2-ZP3/28VDC relay is a solid state relay designed for SPST-NO (1 Form A) circuits.

  • Voltage Input: 3 ~ 28VDC
  • Output Type: AC, Zero Cross
  • Load Current: 2A
  • Voltage Load: 75 V ~ 250 V
  • Termination Style: PC Pin
  • Mounting: Through Hole
  • Series: AQ1
  • Package: Bulk
  • Standard Package: 20
