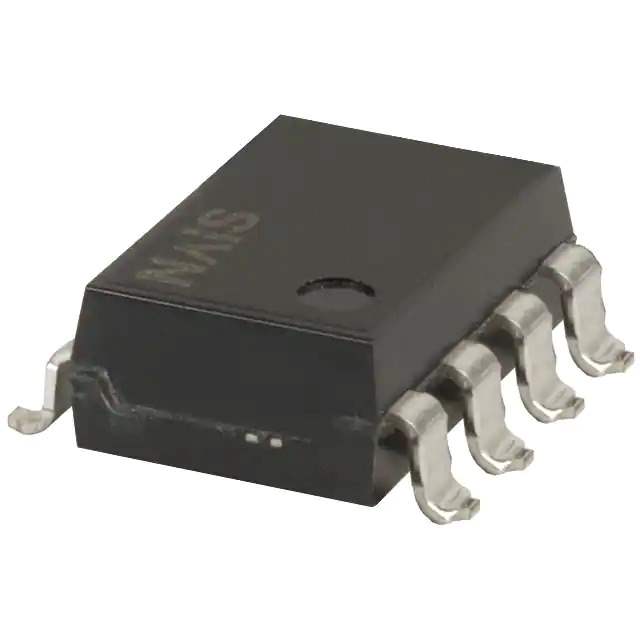

AQW284EHAX Real Image
Same model may have multiple batches, images only for reference.

AQW284EHAX

Part No AQW284EHAX
Manufacturer Panasonic
Catalog Solid State Relays
Description SSR RELAY SPST-NO 100MA 0-400V / Solid State SPST-NO (1 Form A) x 2 8-SMD (0.300", 7.62mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr Panasonic
Series PhotoMOS™ AQW
Package Tape & Reel
Product Status Active
Mounting Type Surface Mount
Circuit SPST-NO (1 Form A) x 2
Output Type AC, DC
Voltage - Input 1.14VDC
Voltage - Load 0 V ~ 400 V
Load Current 100 mA
On-State Resistance (Max) 35 Ohms
Termination Style Gull Wing
Package / Case 8-SMD (0.300", 7.62mm)
Supplier Device Package 8-SMD
Base Product Number AQW284
Standard Package 1,000 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.49.0055
Win Source Part Number 564424-AQW284EHAX
Ultra Librarian 3D Model Ultra Librarian AQW284EHAX CAD Model

Description

The AQW284EHAX is a solid state relay from Panasonic.

  • Manufacturer:Panasonic
  • Series: PhotoMOS AQW
  • Termination Style: Gull Wing
  • Package Option: Tape & Reel
  • Standard Package: 1,000 pcs
  • Input Voltage: 1.14VDC
  • Output Type: AC and DC
  • Circuit Configuration: SPST-NO (1 Form A) x 2
  • On-State Resistance: 35 Ohms (max)
  • Load Current: 100 mA
  • Voltage Range: 0 V to 400 V
  • Mounting: Surface Mountable
  • Package: 8-SMD (0.300", 7.62mm)
