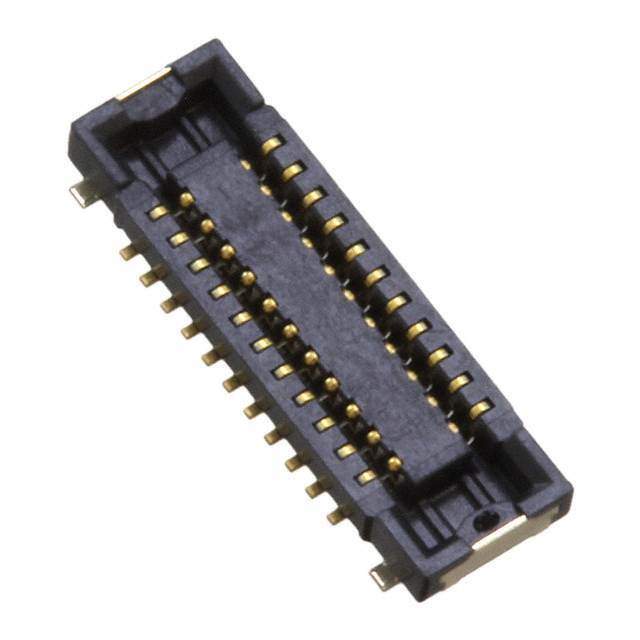

AXE522124 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Panasonic Electric Works
Packaging Reel - TR
Status Active
Connector Type Socket, Center Strip Contacts
Number of Positions 22
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 0.8mm, 1mm
Height Above Board 0.030" (0.75mm)
Win Source Part Number 1020917-AXE522124
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 5k pcs
Ultra Librarian 3D Model Ultra Librarian AXE522124 CAD Model

Description

The Panasonic Electric Works Socket is a high-quality connector designed for use in electronic devices that require a reliable connection.

  • Manufacturer: Panasonic Electric Works
  • Supply and Demand Status: Sufficient
  • Pitch: 0.016" (0.40mm)
  • Number of Positions: 22
