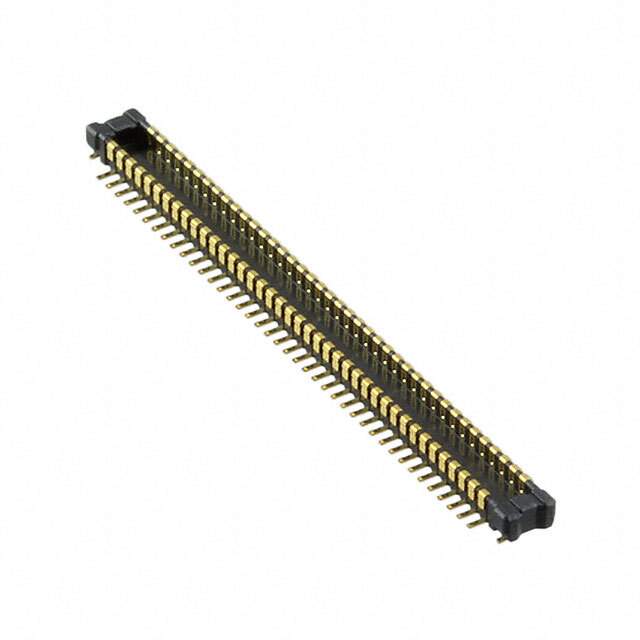

AXE680124 Real Image
Same model may have multiple batches, images only for reference.

AXE680124

Part No AXE680124
Manufacturer Panasonic
Catalog Rectangular Connectors
Description CONN HDR 80POS SMD GOLD / 80 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Arrays, Edge Type, Mezzanine (Board to Board)
Manufacturer Panasonic Electric Works
Packaging Reel - TR
Connector Type Header, Outer Shroud Contacts
Number of Positions 80
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting Surface Mount
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 0.8mm
Height Above Board 0.026" (0.65mm)
Base Product Number AXE680
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number AXE680124-ND,255-3217-1,255-3217-2
Standard Package 5,000
Win Source Part Number 1332492-AXE680124
Ultra Librarian 3D Model Ultra Librarian AXE680124 CAD Model

Description

The AXE680124 is a rectangular connector array manufactured by Panasonic Electric Works.

  • Package: reel - TR
  • Standard Package: 5,000
  • Positions: 80
  • Pitch: 0.016" (0.40mm)
  • Solder Retention: features
  • Connector Type: header, outer shroud contacts
  • Number of Rows: 2
  • Contact Finish: gold
  • Mated Stacking Heights: 0.8mm
  • Height Above Board: 0.026" (0.65mm)
  • RoHS: compliant
