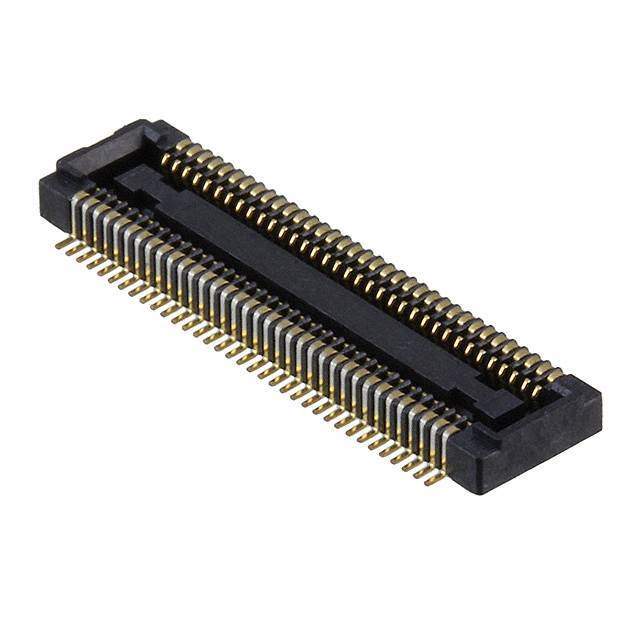

The AXK770147G is a board-to-board connector manufactured by Panasonic, part of the AXK series. These connectors are known for their fine pitch, low profile, and reliable connection in a variety of electronic devices. They are typically used in applications requiring a dense and secure connection between two printed circuit boards.

Applications:

• Board-to-Board Connections
• Mobile Phones
• Digital Cameras
• Laptop Computers
• Other Compact Electronic Devices

Features:

• Fine Pitch Connector
• Low Profile Design
• Surface Mount Technology (SMT)
• High-Density Packaging
• Reliable Contact Design

Benefits:

• Enables high-density board-to-board connections in compact devices.
• Minimizes overall height for slim designs.
• Suitable for automated assembly processes.
• Provides secure and reliable electrical connections.
• Offers space-saving solutions for modern electronics.

Technical Specifications:

Number of Contacts: 70
Pitch: 0.5 mm
Height: Typically less than 1mm (refer to datasheet)
Contact Material: Copper Alloy
Insulator Material: Thermoplastic
Current Rating: 0.5A per contact (Typical)
Voltage Rating: 50V AC/DC (Typical)

The AXK770147G is designed for surface mount assembly. Always consult the official Panasonic datasheet for detailed mechanical dimensions, soldering recommendations, mating force, and other critical design parameters. These connectors are widely used in applications where minimizing size and maximizing reliability are paramount.
