Same model may have multiple batches, images only for reference.

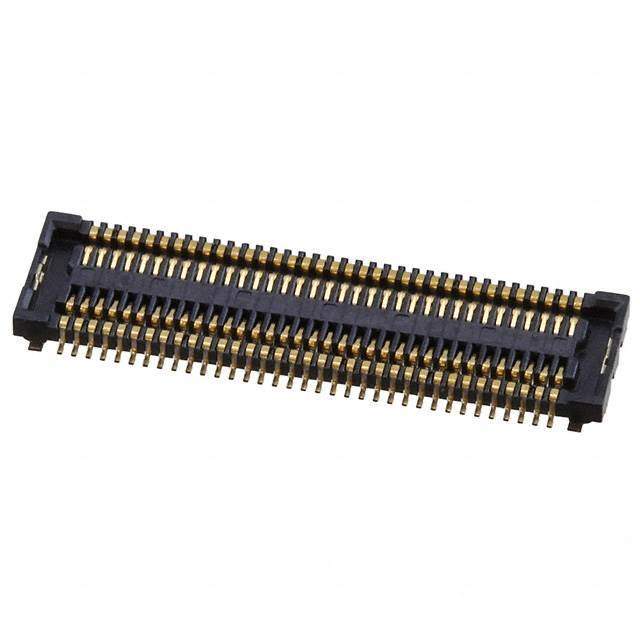

AXK7L70223G Real Image
Same model may have multiple batches, images only for reference.

AXK7L70223G

Part No AXK7L70223G
Manufacturer Panasonic
Catalog Rectangular Connectors
Description CONN SOCKET FPC .4MM 70POS SMD
Datasheet
AXK7L70223G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Panasonic Electric Works
Packaging Reel - TR
Status Obsolete(EOL)
Connector Type Socket, Center Strip Contacts
Number of Positions 70
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 0.9mm
Height Above Board 0.034" (0.86mm)
Win Source Part Number 1021042-AXK7L70223G
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian AXK7L70223G CAD Model

Description

The AXK7L70223G is a socket connector manufactured by Panasonic Electric Works that is designed for use in various applications such as mobile devices, laptops, and servers.

  • Pitch: 0.016" (0.40mm)
  • Number of Positions: 70
  • Features: High-density design and solder retention feature
