Same model may have multiple batches, images only for reference.

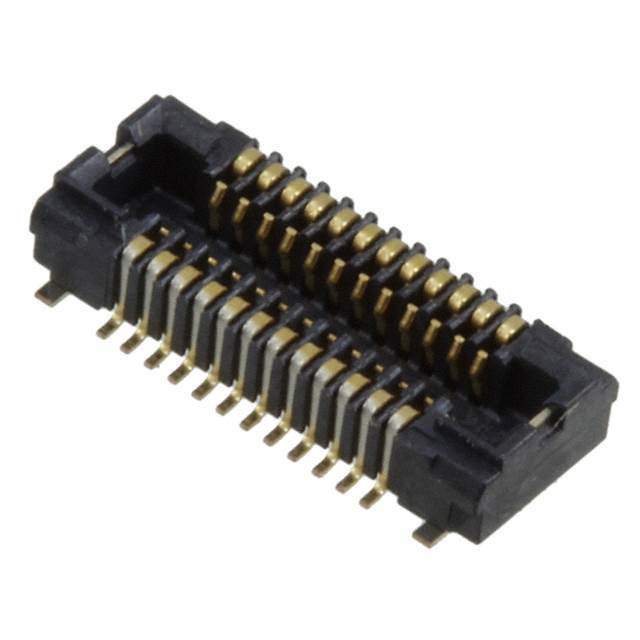

AXT324124 Real Image
Same model may have multiple batches, images only for reference.

AXT324124

Part No AXT324124
Manufacturer Panasonic
Catalog Rectangular Connectors
Description CONN SOCKET FPC .4MM 24POS SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Panasonic Electric Works
Packaging Reel - TR
Status Active
Connector Type Socket, Outer Shroud Contacts
Number of Positions 24
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 1.5mm, 2mm
Height Above Board 0.057" (1.45mm)
Win Source Part Number 1021086-AXT324124
Popularity Medium
Supply and Demand Status Balance
Quantity per package 1k pcs
Ultra Librarian 3D Model Ultra Librarian AXT324124 CAD Model

Description

The Panasonic AXT324124 is a connector that is designed for use in a wide range of applications, including telecommunications, networking, and consumer electronics.

  • Positions: 24
  • Popularity: Medium
  • Supply and Demand: Balance
  • Connector Family: Socket, Outer Shroud Contacts
  • Package: Reel - TR
  • Pitch: 0.016" (0.40mm)
