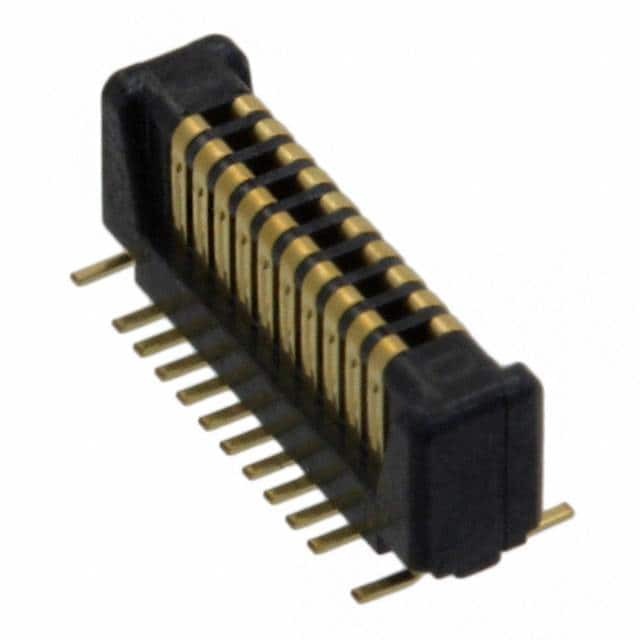

AXT420324
Same model may have multiple batches, images only for reference.

AXT420324

Part No AXT420324
Manufacturer Panasonic
Catalog Rectangular Connectors
Description CONN HDR 20POS SMD GOLD / 20 Position Connector Header, Center Strip Contacts Surface Mount Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Panasonic
Series P4S
Package Tape & Reel
Product Status Active
Connector Type Header, Center Strip Contacts
Number of Positions 20
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting Type Surface Mount
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 3mm
Height Above Board 0.088" (2.23mm)
Base Product Number AXT420
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 862797-AXT420324
Ultra Librarian 3D Model Ultra Librarian AXT420324 CAD Model

Description

The AXT420324 is a 20-position rectangular connector array with a pitch of 0.016" (0.40mm) from Panasonic.

  • Feature: Solder retention
  • Connector Type: Header, center strip contacts
  • Mounting: Surface mount
  • Height Above Board: 0.088" (2.23mm)
  • Series: P4S
  • Rows: Two
  • Contact Finish: Gold
  • Package: Tape & reel
  • Mated Stacking Height: 3mm
