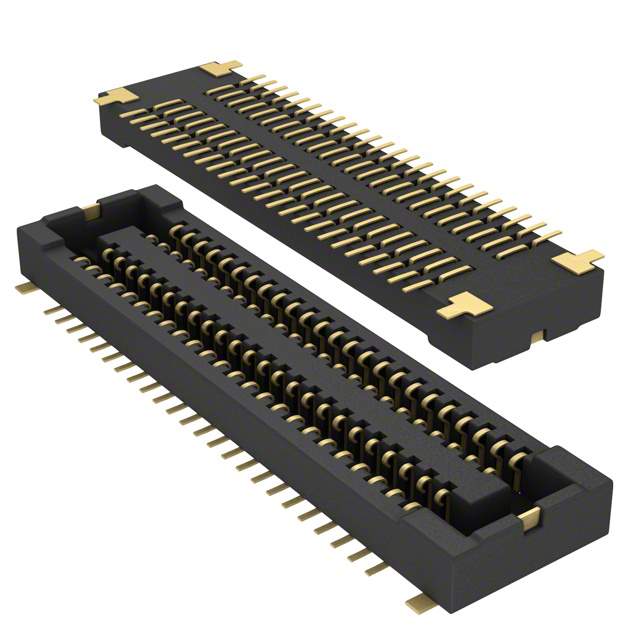

AXT548124 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Panasonic Electric Works
Packaging Reel - TR
Status Active
Connector Type Socket, Outer Shroud Contacts
Number of Positions 48
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 1mm
Height Above Board 0.038" (0.97mm)
Win Source Part Number 1021125-AXT548124
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian AXT548124 CAD Model

Description

The AXT548124 is a socket connector from Panasonic Electric Works.

  • Positions: 48-position socket
  • Contacts: outer shroud contacts
  • Pitch: 0.016" (0.40mm)
  • Contact Plating: gold-plated
  • Features: solder retention
  • Package: reel package
  • RoHS Compliant: Yes
