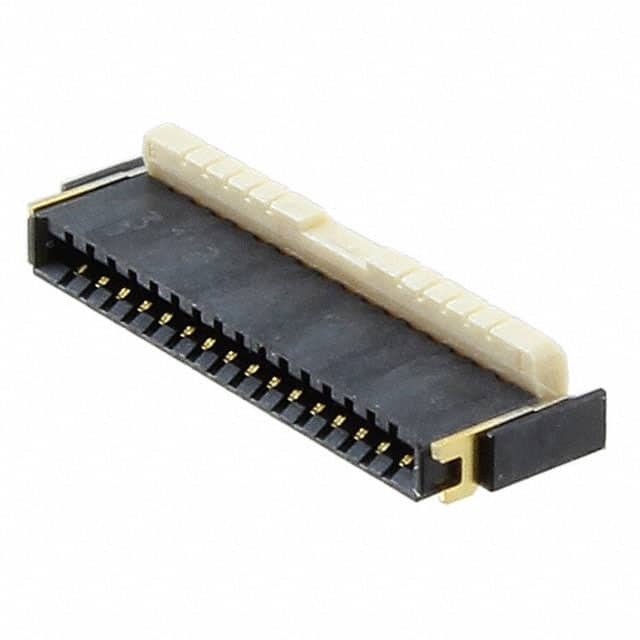

AYF531635

Name: AYF531635
Brand: Panasonic
SKU: 849668
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	AYF531635
Manufacturer	Panasonic
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	CONN FFC FPC 16POS 0.5MM R/A
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - FFC, FPC (Flat Flexible) Connectors - FFC, FPC (Flat Flexible) Connector Assemblies
Mfr	Panasonic
Series	Y5B
Package	Tape & Reel
Product Status	Active
Flat Flex Type	FFC, FPC
Mounting Type	Surface Mount, Right Angle
Connector/Contact Type	Contacts, Top and Bottom
Number of Positions	16
Pitch	0.020" (0.50mm)
Termination	Solder
FFC, FCB Thickness	0.30mm
Height Above Board	0.039" (1.00mm)
Locking Feature	Flip Lock, Backlock
Cable End Type	Tapered
Contact Material	Copper Alloy
Contact Finish	Gold
Housing Material	Liquid Crystal Polymer (LCP)
Actuator Material	Liquid Crystal Polymer (LCP)
Voltage Rating	50V
Temperature Range - Operating	-55°C ~ 85°C
Material Flammability Rating	UL94 V-0
Current Rating (Amps)	0.5A per Contact
Contact Finish Thickness	Flash
Mating Cycles	20
Standard Package	5,000 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4051
Win Source Part Number	849668-AYF531635
Ultra Librarian 3D Model	Ultra Librarian AYF531635 CAD Model

Alternative Products

Description

The Panasonic 849668-AYF531635 is a flat flexible connector assembly designed for FFC and FPC applications.

Positions: 16
Pitch: 0.020" (0.50mm)
Termination: Solder
Contacts: Gold-plated
Voltage Rating: 50V
Current Rating: 0.5A per contact
Height Above Board: 0.039" (1.00mm)
Thickness: 0.30mm
Mounting Type: Surface Mount, Right Angle
Temperature Range: -55°C to 85°C
Status: Active
