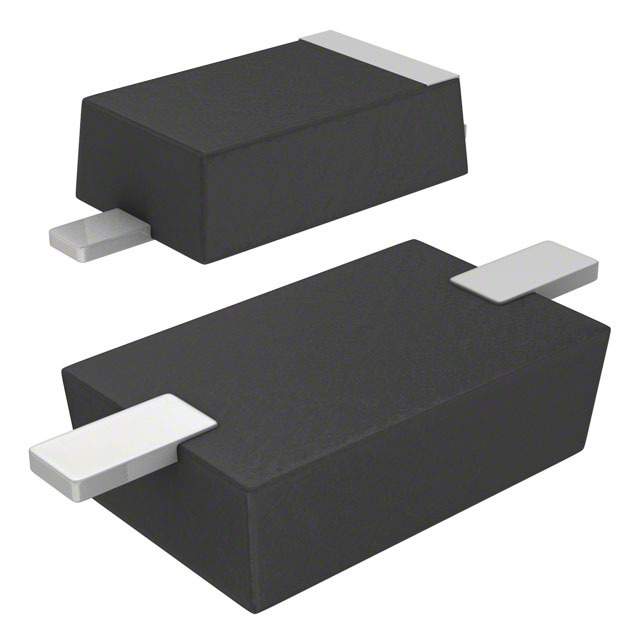

DB2W40100L Panasonic
Same model may have multiple batches, images only for reference.

DB2W40100L

Part No DB2W40100L
Manufacturer Panasonic
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 40V 1A MINI2
Datasheet
DB2W40100L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 40V
Current - Average Rectified (Io) 1A (DC)
Voltage - Forward (Vf) (Max) @ If 390mV @ 1A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 15ns
Current - Reverse Leakage @ Vr 250μA @ 40V
Capacitance @ Vr, F 50pF @ 10V, 1MHz
Mounting SMD (SMT)
Case / Package Mini2-F3-B
Operating Temperature - Junction 150°C (Max)
Win Source Part Number 1032670-DB2W40100L
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian DB2W40100L CAD Model

Description

The Panasonic Electronic Components Schottky Diode is a high-quality electronic component designed to offer superior performance.

  • Maximum DC Reverse Voltage: 40V
  • Average Rectified Current: 1A
  • Voltage Forward @ Max Current: 390mV
  • Reverse Recovery Time: 15ns
  • Capacitance @ Vr, F: 50pF @ 10V, 1MHz
  • Operating Temperature: 150°C (Max)
  • Case/Package: Mini2-F3-B
  • Recovery Speed: 200mA (Io)
