Same model may have multiple batches, images only for reference.

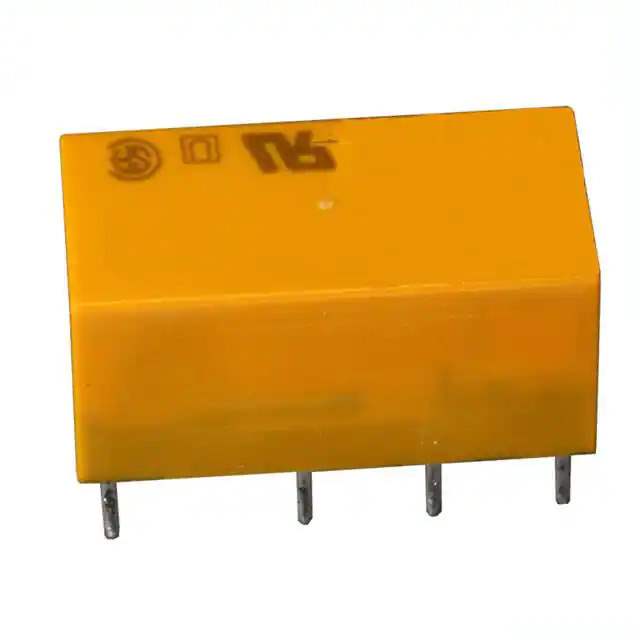

DS2E-SL2-DC24V Real Image
Same model may have multiple batches, images only for reference.

DS2E-SL2-DC24V

Part No DS2E-SL2-DC24V
Manufacturer Panasonic
Catalog Signal Relays, Up to 2 Amps
Description RELAY GEN PURPOSE DPDT 2A 24VDC / General Purpose Relay DPDT (2 Form C) Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Signal Relays, Up to 2 Amps
Mfr Panasonic
Series DS
Package Tube
Product Status Obsolete
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 2 A
Switching Voltage 250VAC, 220VDC - Max
Coil Current 7.5 mA
Coil Type Latching, Dual Coil
Termination Style PC Pin
Seal Rating Sealed - Fully
Must Operate Voltage 16.8 VDC
Operate Time 10 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 70°C
Contact Material Silver (Ag), Gold (Au)
Relay Type General Purpose
Coil Resistance 3.2 kOhms
Base Product Number DS2E
Standard Package 50 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 586578-DS2E-SL2-DC24V
Ultra Librarian 3D Model Ultra Librarian DS2E-SL2-DC24V CAD Model

Description

The 586578-DS2E-SL2-DC24V is a signal relay from the DS series.

  • Termination Style: PC Pin
  • Package: Tube (50 pieces)
  • Contact Form: Double-Pole, Double-Throw (DPDT)
  • Contact Material: Silver (Ag) and Gold (Au)
  • Coil Voltage: 24VDC
  • Coil Resistance: 3.2 kOhms
  • Switching Voltage: 250VAC and 220VDC maximum
  • Sealed: Fully
  • Operating Temperature Range: -40°C to 70°C
  • Mounting Type: Through-Hole
  • Manufacturer: Panasonic
  • Product Status: Obsolete
