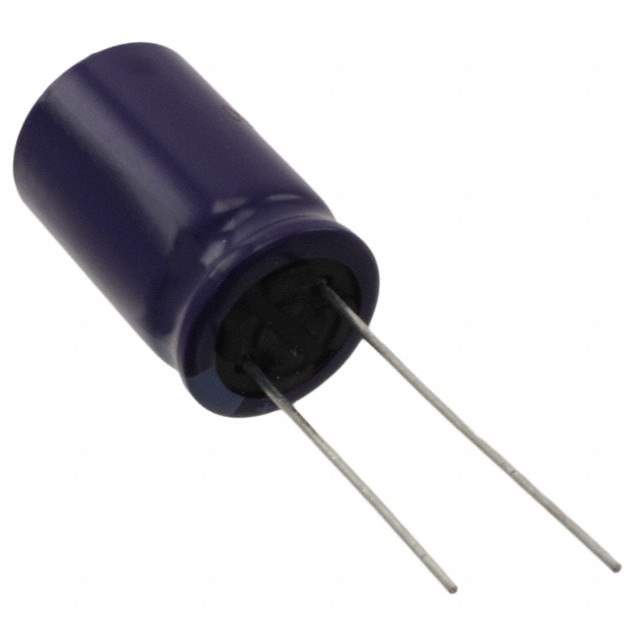

ECA-2AM471 Real Image
Same model may have multiple batches, images only for reference.

ECA-2AM471

Part No ECA-2AM471
Manufacturer Panasonic
Catalog Aluminum Capacitors
Description CAP ALUM 470UF 20% 100V RADIAL / 470 µF 100 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Panasonic Electronic Components
Series M-A
Package Bulk
Capacitance 470 µF
Tolerance ±20%
Voltage - Rated 100 V
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 900 mA @ 120 Hz
Ripple Current @ High Frequency 1.53 A @ 10 kHz
Lead Spacing 0.295" (7.50mm)
Dimension 0.630" Dia (16.00mm)
Height - Seated (Max) 1.063" (27.00mm)
Mounting Type Through Hole
Package / Case Radial, Can
Base Product Number ECA-2AM
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names P5316,ECA2AM471
Standard Package 100
Win Source Part Number 1013874-ECA-2AM471
Ultra Librarian 3D Model Ultra Librarian ECA-2AM471 CAD Model

Description

The Panasonic Electronic Components ECA-2AM471 is an aluminum electrolytic capacitor that has a capacitance of 470 μF and a voltage rating of 100 V.

  • Capacitance: 470 μF
  • Voltage Rating: 100 V
  • Tolerance: ±20%
  • Ripple Current: 900 mA @ 120 Hz and 1.53 A @ 10 kHz
  • Diameter: 0.630 inches
  • Package: Radial, can
  • MSL Level: Not applicable
  • Applications: General purpose
  • Lifetime: 2000 Hrs @ 85°C
