Same model may have multiple batches, images only for reference.

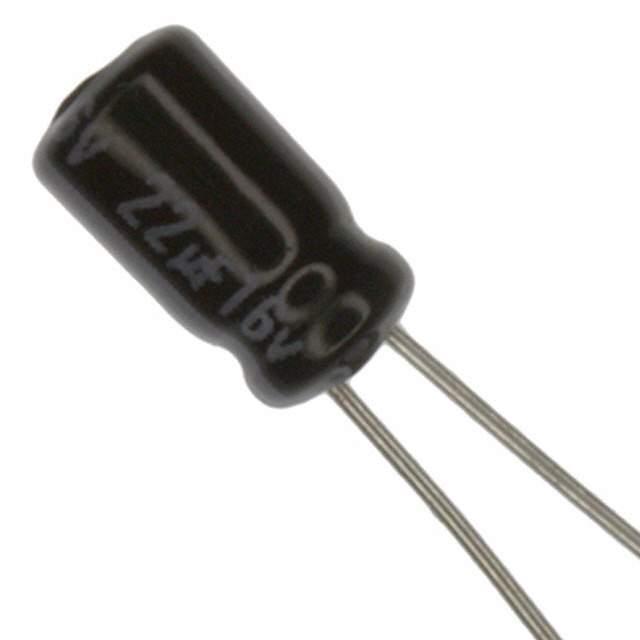

ECE-A1CKA220 Real Image
Same model may have multiple batches, images only for reference.

ECE-A1CKA220

Part No ECE-A1CKA220
Manufacturer Panasonic
Catalog Aluminum Capacitors
Description CAP ALUM 22UF 20% 16V RADIAL / 22 µF 16 V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Panasonic Electronic Components
Series KA
Package Bulk
Capacitance 22 µF
Tolerance ±20%
Voltage - Rated 16 V
Lifetime @ Temp. 1000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 39 mA @ 120 Hz
Ripple Current @ High Frequency 66.3 mA @ 10 kHz
Lead Spacing 0.059" (1.50mm)
Size / Dimension 0.157" Dia (4.00mm)
Height - Seated (Max) 0.276" (7.00mm)
Mounting Type Through Hole
Package / Case Radial, Can
Base Product Number ECE-A1
Standard Package 200
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1351429-ECE-A1CKA220
Ultra Librarian 3D Model Ultra Librarian ECE-A1CKA220 CAD Model

Description

The ECE-A1CKA220 is an aluminum electrolytic capacitor from Panasonic Electronic Components.

  • Series: KA
  • Packaging: Bulk
  • Capacitance: 22 µF
  • Tolerance: ±20%
  • Voltage Rating: 16V
  • Lead Spacing: 0.059" (1.50mm)
  • Ripple Current (Low Frequency): 39 mA @ 120 Hz
  • Ripple Current (High Frequency): 66.3 mA @ 10 kHz
  • Operating Temperature: -40°C to 85°C
  • REACH: Unaffected
