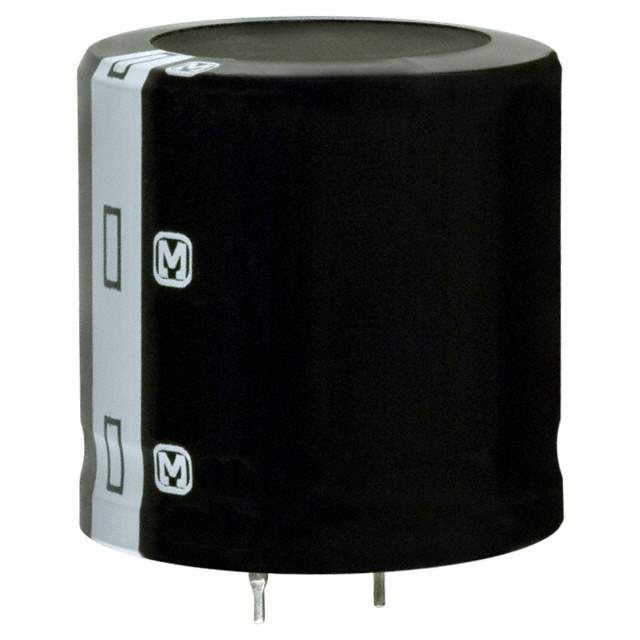

Same model may have multiple batches, images only for reference.

ECO-S1CA333EA

Get a Quote

Part No	ECO-S1CA333EA
Manufacturer	Panasonic
Catalog	Aluminum Capacitors
Description	CAP ALUM 33000UF 20% 16V SNAP / 33000 µF 16 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 23mOhm @ 120Hz 3000 Hrs @ 105°C
Datasheet	ECO-S1CA333EA Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Panasonic Electronic Components
Series	TS-HA
Package	Bulk
Product Status	Obsolete
Capacitance	33000 µF
Tolerance	±20%
Voltage - Rated	16 V
ESR (Equivalent Series Resistance)	23mOhm @ 120Hz
Lifetime @ Temp.	3000 Hrs @ 105°C
Temperature Range - Operating	-40°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	4.7 A @ 120 Hz
Ripple Current @ High Frequency	5.405 A @ 100 kHz
Lead Spacing	0.394" (10.00mm)
Size / Dimension	1.378" Dia (35.00mm)
Height - Seated (Max)	1.457" (37.00mm)
Mounting Type	Through Hole
Package / Case	Radial, Can - Snap-In
Base Product Number	ECO-S1
Standard Package	100
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8532.22.0040
Win Source Part Number	1339287-ECO-S1CA333EA
Ultra Librarian 3D Model	Ultra Librarian ECO-S1CA333EA CAD Model

Alternative Products

Description

The ECO-S1CA333EA is a general-purpose aluminum electrolytic capacitor from Panasonic Electronic Components.

Series: TS-HA
Capacitance: 33000µF
Voltage Rating: 16V
Tolerance: ±20%
ESR: 23mOhm @ 120Hz
Ripple Current (Low Frequency): 4.7A @ 120Hz
Ripple Current (High Frequency): 5.405A @ 50kHz
Mounting Type: Through-Hole
Package: Radial, Can-Snap-In
Height: 37.00mm
Diameter: 35.00mm
Temperature Range: -40°C to 105°C
ECCN: EAR99
REACH: Affected
HTSUS: 8532.22.0040
