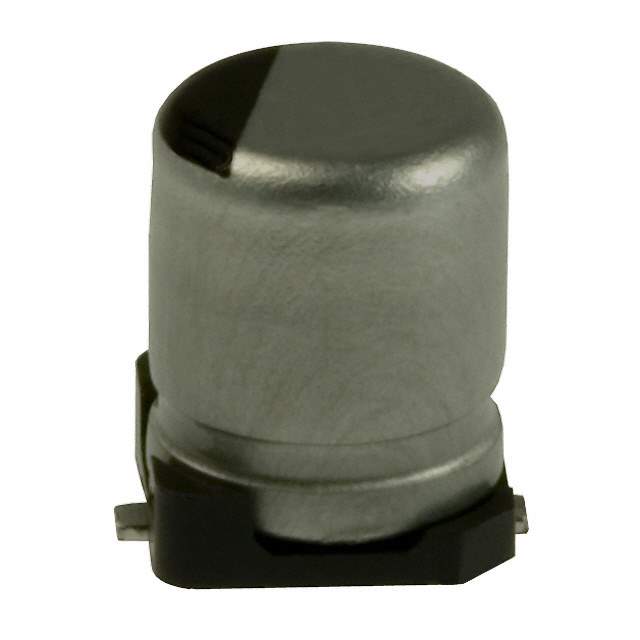

Same model may have multiple batches, images only for reference.

EEE-1VA100WR

Name: EEE-1VA100WR
Brand: Panasonic
SKU: 1328494
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	EEE-1VA100WR
Manufacturer	Panasonic
Catalog	Aluminum Capacitors
Description	CAP ALUM 10UF 20% 35V SMD / 10 µF 35 V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 85°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Manufacturer	Panasonic Electronic Components
Packaging	Reel - TR
Product Status	Not For New Designs
Capacitance	10 µF
Tolerance	±20%
Voltage - Rated	35 V
Lifetime @ Temp.	1000 Hrs @ 85°C
Temperature Range - Operating	-40°C ~ 85°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	22 mA @ 120 Hz
Ripple Current @ High Frequency	37.4 mA @ 10 kHz
Size / Dimension	0.157" Dia (4.00mm)
Height - Seated (Max)	0.213" (5.40mm)
Surface Mount Land Size	0.169" L x 0.169" W (4.30mm x 4.30mm)
Mounting	Surface Mount
Case / Package	Radial, Can - SMD
Base Product Number	EEE-1VA
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Other Part Number	EEE1VA100WR,PCE3948TR,PCE3948DKR,Q2188877,EEE-1VA100WR-ND,PCE3948CT
Standard Package	2,000
Win Source Part Number	1328494-EEE-1VA100WR
Ultra Librarian 3D Model	Ultra Librarian EEE-1VA100WR CAD Model

Alternative Products

Description

The EEE-1VA100WR is a surface-mount aluminum electrolytic capacitor from Panasonic Electronic Components that has a capacitance of 10 microfarads and a voltage rating of 35V.

Capacitance: 10 microfarads
Voltage Rating: 35V
Tolerance: ±20%
Operating Temperature: -40°C to 85°C
Packaging: radial, can - SMD
Size: 0.157 inches in diameter and 0.213 inches in height
Application: automotive applications
Ripple Current: 22 mA @ 120 Hz and 37.4 mA @ 10 kHz
