Products specifications Report Issue?

Categories Uncategorized
Manufacturer Panasonic
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 822317-EEE1CA100SR
Ultra Librarian 3D Model Ultra Librarian EEE1CA100SR CAD Model

Description

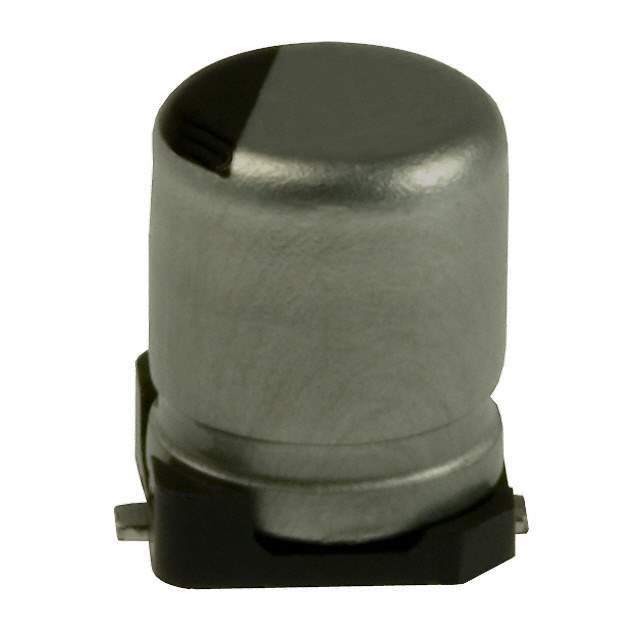

The EEE1CA100SR is an aluminum electrolytic capacitor manufactured by Panasonic. These capacitors are widely used in electronic circuits for energy storage, filtering, and smoothing voltage fluctuations. Aluminum electrolytic capacitors are characterized by their relatively high capacitance values for their size, making them suitable for applications where large capacitance is required in a compact form factor.

Applications:

  • Power supplies
  • DC-DC converters
  • Audio equipment
  • Industrial control systems
  • Consumer electronics (e.g., televisions, computers, and appliances)

Features:

  • High capacitance value
  • Compact size
  • Long operational life
  • Stable performance over a wide temperature range
  • RoHS compliant

Benefits:

  • Efficient energy storage
  • Effective filtering and smoothing of voltage fluctuations
  • Reliable performance in demanding environments
  • Reduced board space requirements
  • Compliance with environmental regulations

Additional Details:

Specific technical specifications for the EEE1CA100SR, such as capacitance value, voltage rating, ESR (Equivalent Series Resistance), ripple current, and operating temperature range, can be found in the manufacturer's datasheet. It is crucial to consult the datasheet to ensure that the capacitor meets the requirements of the intended application. These capacitors are typically polarized, meaning they must be connected with the correct polarity in the circuit. Reversing the polarity can lead to failure or damage. The aluminum electrolytic construction provides a cost-effective solution for high-capacitance applications. They are available in various case sizes and lead configurations to accommodate different mounting requirements.
