Same model may have multiple batches, images only for reference.

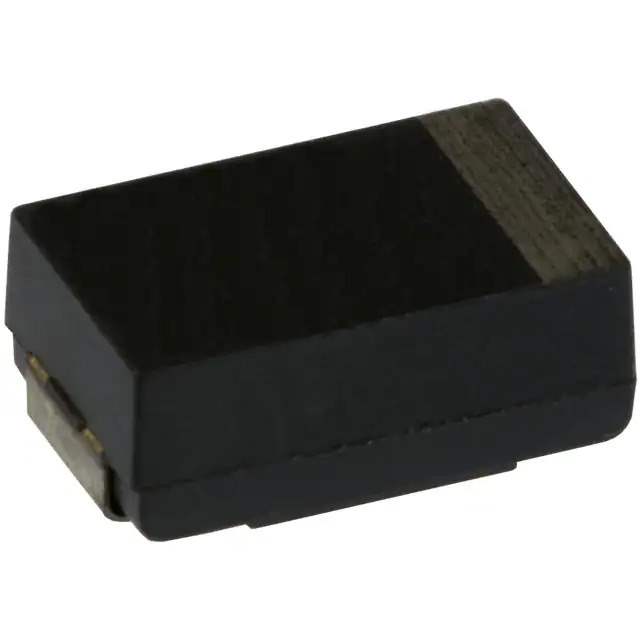

EEF-UD0K680ER Real Image
Same model may have multiple batches, images only for reference.

EEF-UD0K680ER

Part No EEF-UD0K680ER
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 68UF 20% 8V SMD / 68 μF 8 V Aluminum - Polymer Capacitors 2917 (7343 Metric) 15mOhm 1000 Hrs @ 105°C
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum - Polymer Capacitors
Mfr Panasonic
Series SP-Cap UD
Package Tape & Reel
Product Status Obsolete
Type Polymer
Capacitance 68 µF
Tolerance ±20%
Voltage - Rated 8 V
ESR (Equivalent Series Resistance) 15mOhm
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Applications General Purpose
Ripple Current @ High Frequency 3 A @ 100 kHz
Size / Dimension 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) 0.118" (3.00mm)
Mounting Type Surface Mount
Package / Case 2917 (7343 Metric)
Base Product Number EEF-UD
Standard Package 2,000 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 870158-EEF-UD0K680ER
Ultra Librarian 3D Model Ultra Librarian EEF-UD0K680ER CAD Model

Description

The 870158-EEF-UD0K680ER is a polymer capacitor from the Panasonic SP-Cap UD series.

  • Capacitance: 68 μF
  • Tolerance: ±20%
  • Voltage Rating: 8V
  • ESR: 15mOhm
  • Size: 0.287" L x 0.169" W (7.30mm x 4.30mm)
  • Application: general-purpose applications
  • Lifetime: 1000 hours @ 105°C
  • Operating Temperature Range: -40°C to 105°C
  • Manufacturer: Panasonic
  • Status: obsolete
