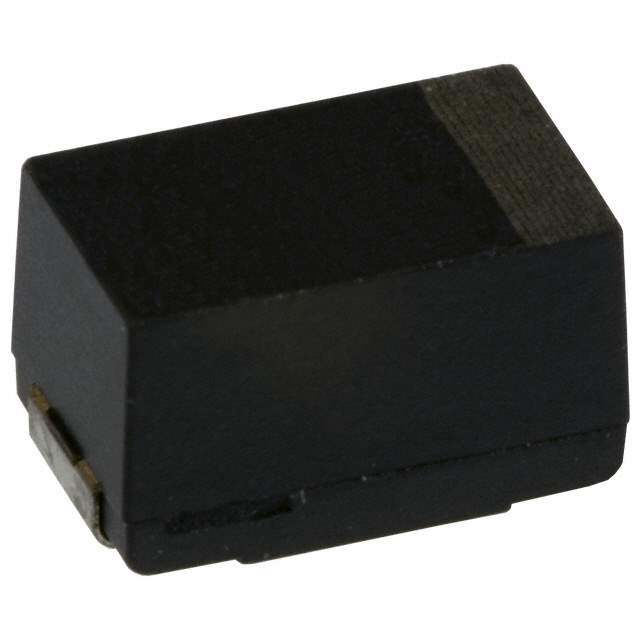

Same model may have multiple batches, images only for reference.

EEF-UE0G221ER

Get a Quote

Part No	EEF-UE0G221ER
Manufacturer	Panasonic
Catalog	Aluminum - Polymer Capacitors
Description	CAP ALUM POLY 220UF 20% 4V SMD / 220 µF 4 V Aluminum - Polymer Capacitors 2917 (7343 Metric) 12mOhm 1000 Hrs @ 105°C
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum - Polymer Capacitors
Mfr	Panasonic Electronic Components
Series	SP-Cap UE
Package	Tape & Reel (TR)
Product Status	Obsolete
Type	Polymer
Capacitance	220 µF
Tolerance	±20%
Voltage - Rated	4 V
ESR (Equivalent Series Resistance)	12mOhm
Lifetime @ Temp.	1000 Hrs @ 105°C
Temperature Range - Operating	-40°C ~ 105°C
Applications	General Purpose
Ripple Current @ High Frequency	3.3 A @ 100 kHz
Dimension	0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max)	0.165" (4.20mm)
Surface Mount Land Size	0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting	SMD (SMT)
Package / Case	2917 (7343 Metric)
Base Product Number	EEF-UE
MSL Level	3 (168 Hours)
ECCN	EAR99
HTSUS	8532.22.0020
Other Names	EEFUE0G221ER,Q3800519
Standard Package	2,000
Win Source Part Number	1124295-EEF-UE0G221ER
Ultra Librarian 3D Model	Ultra Librarian EEF-UE0G221ER CAD Model

Description

This electronic component is a capacitor from the SP-Cap UE series, type polymer, with a capacitance of 220 µF and a voltage rating of 4 V.

Series: SP-Cap UE
Type: Polymer
Capacitance: 220 µF
Voltage Rating: 4 V
Win Source Part Number: 1124295-EEF-UE0G221ER
Package: Tape and Reel (TR)
Standard Package: 2,000 units
ESR: 12mOhm
Lifetime @ Temperature: 1000 Hrs @ 105°C
Surface Mount Land Size: 0.287" L x 0.169" W (7.30mm x 4.30mm)
Package/Case: 2917 (7343 Metric)
Ripple Current @ High Frequency: 3.3 A @ 100 kHz
