Same model may have multiple batches, images only for reference.

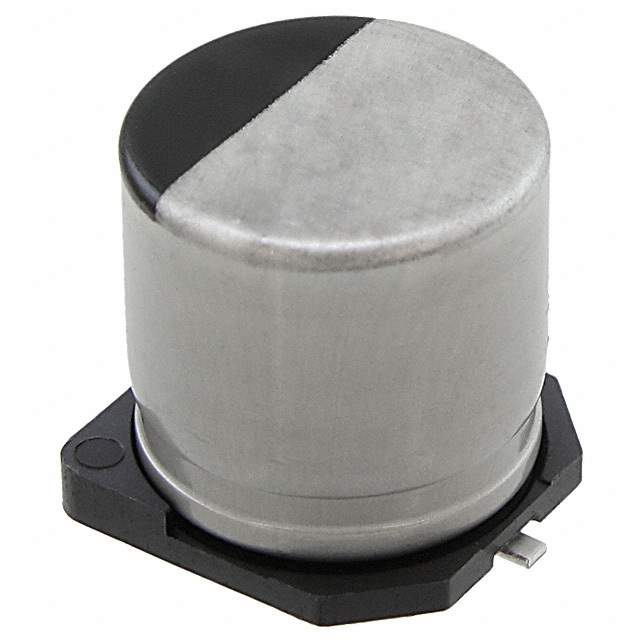

EEH-ZC1J680P Real Image
Same model may have multiple batches, images only for reference.

EEH-ZC1J680P

Part No EEH-ZC1J680P
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY HYB 68UF 63V SMD / 68 µF 63 V Aluminum - Polymer Capacitors Radial, Can - SMD 30mOhm 4000 Hrs @ 125°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum - Polymer Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Type Hybrid
Capacitance 68 µF
Tolerance ±20%
Voltage - Rated 63 V
ESR (Equivalent Series Resistance) 30mOhm
Lifetime @ Temp. 4000 Hrs @ 125°C
Temperature Range - Operating -55°C ~ 125°C
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 210 mA @ 100 Hz
Ripple Current @ High Frequency 1.4 A @ 100 kHz
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.413" (10.50mm)
Surface Mount Land Size 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Surface Mount
Case / Package Radial, Can - SMD
Base Product Number EEH-ZC
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Part Number P19317TR,P19317DKR,P19317CT,EEHZC1J680P
Standard Package 500
Win Source Part Number 1330868-EEH-ZC1J680P
Ultra Librarian 3D Model Ultra Librarian EEH-ZC1J680P CAD Model

Description

The 1330868-EEH-ZC1J680P is a hybrid aluminum-polymer capacitor with a capacitance of 68 µF and a voltage rating of 63 V from Panasonic Electronic Components.

  • Capacitance: 68 µF
  • Voltage Rating: 63 V
  • Tolerance: ±20%
  • ESR: 30mOhm
  • Rated Lifetime: 4000 hours @ 125°C
  • Series: EEH-ZC
  • Certification: AEC-Q200 certified
  • Case/Package: Radial, can - SMD
  • Ripple Current (Low Frequency): 210 mA @ 100 Hz
  • Ripple Current (High Frequency): 1.4 A @ 100 kHz
  • Compliance: RoHS3 compliant
  • REACH: Unaffected by REACH
