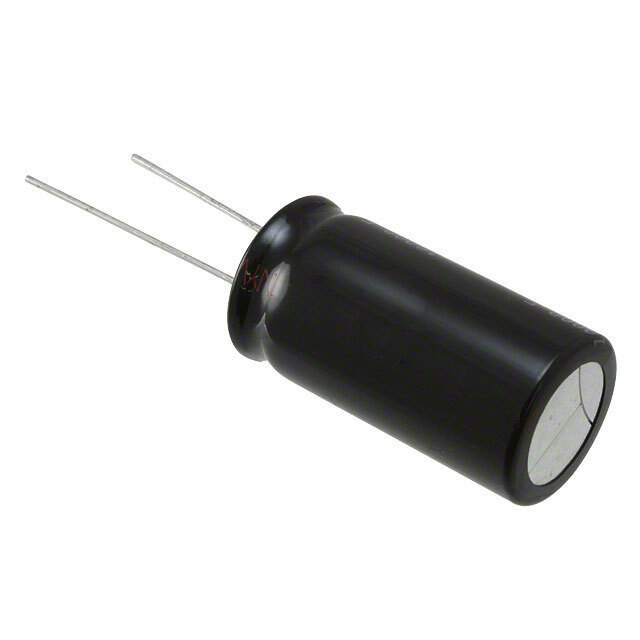

Same model may have multiple batches, images only for reference.

EEU-HD1C153

Name: EEU-HD1C153
Brand: Panasonic
SKU: 1339052
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	EEU-HD1C153
Manufacturer	Panasonic
Catalog	Aluminum Capacitors
Description	CAP ALUM 15000UF 20% 16V RADIAL / 15000 µF 16 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C
Datasheet	EEU-HD1C153 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Panasonic Electronic Components
Series	HD
Package	Bulk
Capacitance	15000 µF
Tolerance	±20%
Voltage - Rated	16 V
Lifetime @ Temp.	2000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	2.21 A @ 120 Hz
Ripple Current @ High Frequency	2.542 A @ 100 kHz
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.709" Dia (18.00mm)
Height - Seated (Max)	1.476" (37.50mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
Base Product Number	EEU-HD
Standard Package	50
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1339052-EEU-HD1C153
Ultra Librarian 3D Model	Ultra Librarian EEU-HD1C153 CAD Model

Alternative Products

Description

The Panasonic Electronic Components EEU-HD series is a radial, can type aluminum electrolytic capacitor from Panasonic Electronic Components.

Capacitance: 15000 µF
Voltage Rating: 16 V
ESR: Not specified
Polarization: Polarized
Tolerance: ±20%
Ripple Current: 2.21 A @ 120 Hz, 2.542 A @ 100 kHz
Height: 1.476" (37.50mm)
Diameter: 0.709" (18.00mm)
Temperature Range: -55°C to 105°C
Lifetime: 2000 Hrs @ 105°C
Application: General-Purpose
