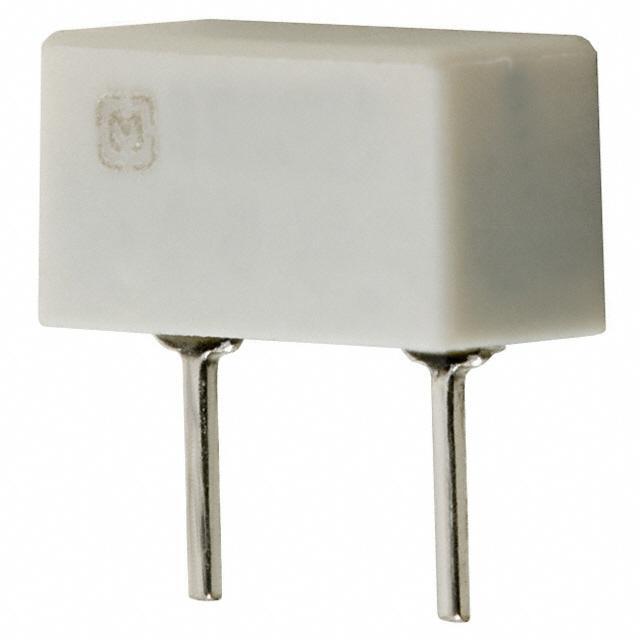

Same model may have multiple batches, images only for reference.
EFO-MN3004A4 Panasonic
Same model may have multiple batches, images only for reference.

EFO-MN3004A4

Part No EFO-MN3004A4
Manufacturer Panasonic
Catalog Resonators
Description CER RES 3.0000MHZ T/H / Ceramic Resonator 3MHz ±0.5% (Tol) 2-Pin Thru-Hole Bulk
Datasheet
EFO-MN3004A4 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals, Oscillators, Resonators
Manufacturer Panasonic Electronic Components
Series EFO-MN
Packaging Bulk
Part Status Obsolete(EOL)
Type Ceramic
Frequency 3MHz
Frequency Stability ±0.3%
Frequency Tolerance ±0.5%
Operating Temperature Range -20°C ~ 80°C
Mounting Style Through Hole
Package Radial, Box - 2 Lead, 5.00mm Pitch
Dimension 0.335" L x 0.158" W (8.50mm x 4.00mm)
Height 0.197" (5.00mm)
Win Source Part Number 789051-EFO-MN3004A4
Popularity Medium
Supply and Demand Status Limited
Introduction Date February 18, 2002
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian EFO-MN3004A4 CAD Model

Description

The Panasonic Electronic Components EFO-MN3004A4 is a ceramic through-hole oscillator with a frequency of 3MHz and a frequency tolerance of ±0.5%.

  • Frequency Stability: ±0.3%
  • Operating Temperature Range: -20°C to 80°C
  • Package: Radial Box, 2 Leads
  • Pitch: 5.00mm
  • Height: 0.197 inches (5.00mm)
  • Series: EFO-MN
  • Dimensions: 0.335 inches (length), 0.158 inches (width)
  • Packaging: Bulk
  • Category: Crystal, Oscillator, or Resonator
  • Status: Obsolete (EOL)
  • Alternative Parts: PBRC-3.00AR
  • ECCN: EAR99
  • Estimated EOL Date: Obsolete/End of Life
