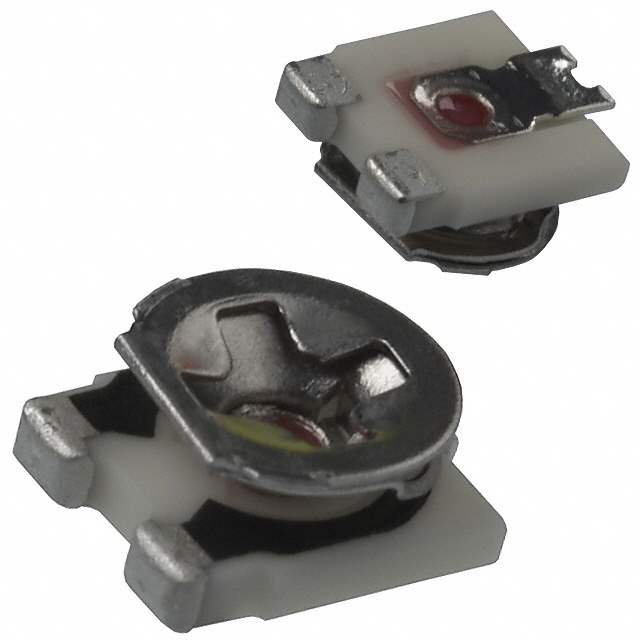

EVM-3VSX50B15 Real Image
Same model may have multiple batches, images only for reference.

EVM-3VSX50B15

Part No EVM-3VSX50B15
Manufacturer Panasonic
Catalog Trimmer Potentiometers
Description TRIMMER 100K OHM 0.15W SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Resistance (Ohms) 100k
Power (Watts) 0.15W
Tolerance ±25%
Temperature Coefficient ±250ppm/°C
Number of Turns 1
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting SMD (SMT)
Termination Style J Lead
Dimension Rectangular - 0.136" x 0.122" Face x 0.055" H (3.45mm x 3.10mm x 1.40mm)
Win Source Part Number 109070-EVM-3VSX50B15
Popularity Medium
Supply and Demand Status Balance
Quantity per package 2k pcs
Ultra Librarian 3D Model Ultra Librarian EVM-3VSX50B15 CAD Model

Description

Description

The EVM-3VSX50B15 trimmer potentiometer is an ideal choice for applications requiring fine-tuning and extended lifespan. Its advanced design offers precise resistance control and easy integration into various circuit designs, enhancing the end-user experience.

Features and Benefits

  • Enhanced Precision: Provides accurate and repeatable tuning settings.
  • Wide Operational Range: Supports a broad range of applications in different environments.
  • Long-lasting Performance: Engineered for stability and longevity.

Applications

  • Telecommunication Equipment
  • Automation Systems
  • Medical Devices
