Same model may have multiple batches, images only for reference.

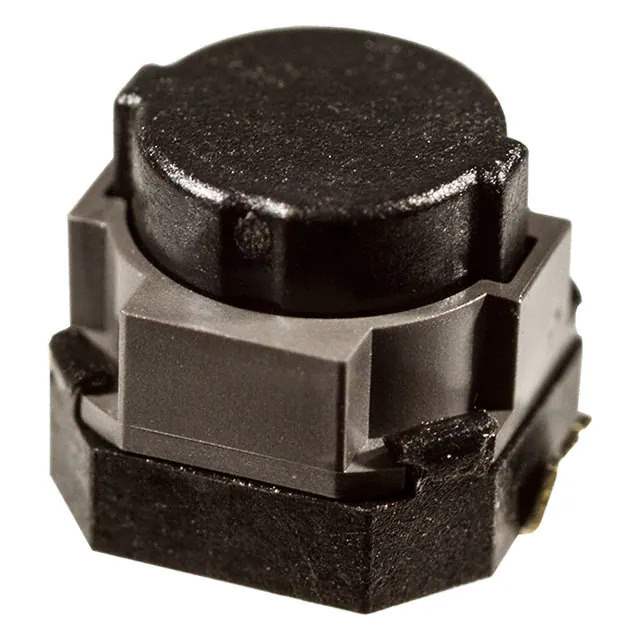

EVP-ASDB1A Real Image
Same model may have multiple batches, images only for reference.

EVP-ASDB1A

Part No EVP-ASDB1A
Manufacturer Panasonic
Catalog Tactile Switches
Description 6 X 6.1 X 5MM / 2.5N / 1.0MM TRA / Tactile Switch SPST-NO Top Actuated Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Tactile Switches
Mfr Panasonic
Series EVPAS
Package Tape & Reel
Product Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 12VDC
Actuator Type Round Button
Mounting Type Surface Mount
Actuator Height off PCB, Vertical 5.00mm
Actuator Orientation Top Actuated
Termination Style J Lead
Outline 6.10mm x 6.00mm
Illumination Non-Illuminated
Operating Force 250gf
Temperature Range - Operating -40°C ~ 90°C
Switch Travel 1.00mm
Mechanical Life 100,000 Cycles
Base Product Number EVP-AS
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 871295-EVP-ASDB1A
Ultra Librarian 3D Model Ultra Librarian EVP-ASDB1A CAD Model

Description

The EVPAS series tactile switch is a versatile and high-performance component designed for various electronic applications.

  • Termination Style: J lead
  • Standard Package: 2,000 pcs
  • Circuit Configuration: SPST-NO
  • Switch Function: Off-Mom
  • Switch Travel: 1.00mm
  • Operating Force: 250gf
  • Actuator Orientation: Top Actuated
  • Outline Dimensions: 6.10mm x 6.00mm
  • Illumination: Non-Illuminated
  • Mounting: Surface Mount
  • Operating Temperature: -40°C to 90°C
  • Manufacturer: Panasonic
