Products specifications

Categories Uncategorized
Manufacturer Panasonic
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 823027-EVPAEDB2A
Ultra Librarian 3D Model Ultra Librarian EVPAEDB2A CAD Model

Description

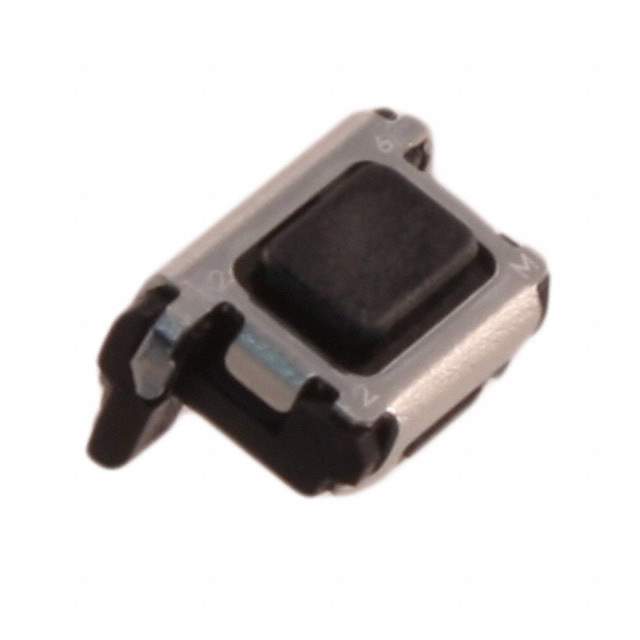

The Panasonic EVPAEDB2A is a compact and reliable tactile switch designed for a wide range of applications where momentary switch activation is required. This switch offers a distinct tactile feedback, providing users with clear confirmation of switch actuation. Its small size and robust construction make it suitable for various electronic devices.

Applications

  • Consumer electronics (remote controls, audio devices)
  • Industrial control panels
  • Medical equipment
  • Instrumentation devices
  • Gaming peripherals
  • Automotive applications

Features

  • Compact design
  • Clear tactile feedback
  • High reliability
  • Long operational life
  • Surface mountable
  • RoHS compliant

Benefits

  • Provides user confirmation of switch actuation
  • Saves space in compact electronic devices
  • Reduces maintenance costs due to high reliability
  • Ensures consistent performance over a long period
  • Suitable for automated assembly processes
  • Meets environmental regulations

Additional Details

The EVPAEDB2A tactile switch is designed for surface mounting on printed circuit boards (PCBs). Its compact size allows for high-density placement, making it suitable for miniature electronic devices. The switch's internal mechanism is engineered to provide a consistent tactile feel throughout its lifespan. It is constructed with high-quality materials that resist wear and tear, ensuring reliable performance over time. The switch's operating force is optimized for comfortable and responsive actuation. Electrical characteristics such as contact resistance and bounce time are carefully controlled to ensure clean and reliable switching. The switch is also designed to withstand the rigors of reflow soldering processes. The part is commonly used in applications requiring a positive tactile response. The dimensions and pad layout details are specified in the datasheet. The housing material and contact materials are chosen for durability and corrosion resistance.
