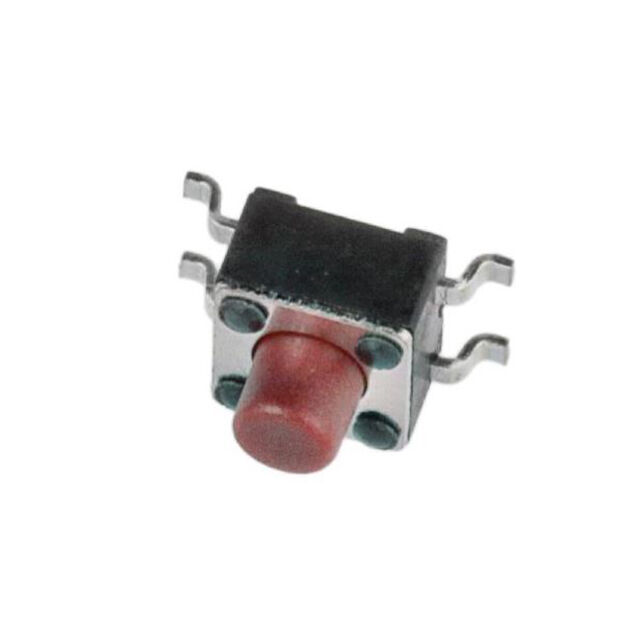

Same model may have multiple batches, images only for reference.
TL3305BF260QG E-Switch – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

TL3305BF260QG

Part No TL3305BF260QG
Manufacturer E-SWITCH
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.05A 12V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category SwitchesTactile Switches
Mfr E-Switch
Series TL3305
Part Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 12VDC
Actuator Type Standard
Mounting Type Surface Mount
Actuator Height off PCB, Vertical 5.00mm
Actuator Orientation Top Actuated
Termination Style Gull Wing
Outline 4.50mm x 4.50mm
Illumination Non-Illuminated
Operating Force 260gf
Operating Temperature -20°C ~ 70°C
Switch Travel 0.20mm
Mechanical Life 200,000 Cycles
Base Product Number TL3305
Ultra Librarian 3D Model Ultra Librarian TL3305BF260QG CAD Model
