Same model may have multiple batches, images only for reference.

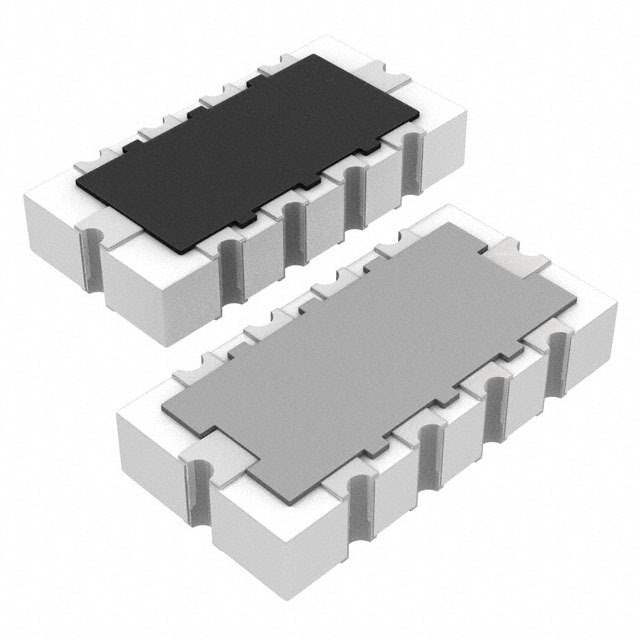

EZA-DT43AAAJ Real Image
Same model may have multiple batches, images only for reference.

EZA-DT43AAAJ

Part No EZA-DT43AAAJ
Manufacturer Panasonic
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER RC(PI) 220 OHM/100PF SMD
Datasheet
EZA-DT43AAAJ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Obsolete(EOL)
Type Low Pass
Filter Order 1st
Technology RC (Pi)
Number of Channels 4
Resistance - Channel (Ohms) 220
Values R = 220 Ohms, C = 100pF
ESD Protection No
Temperature Range - Operating -25°C to 85°C
Applications Data Lines for Mobile Devices
Voltage Rating 12V
Mounting SMD (SMT)
Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height 0.033" (0.85mm)
Win Source Part Number 096417-EZA-DT43AAAJ
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian EZA-DT43AAAJ CAD Model

Description

Overview

The EZA-DT43AAAJ is a high-performance electronic component designed for various advanced applications. Known for its reliability and efficiency, this component is suitable for integration into a wide range of projects, providing consistent performance under challenging conditions.

Applications

  • Automotive electronic systems
  • Industrial automation
  • Consumer electronics
  • Power management solutions

Features and Benefits

  • High Efficiency: Optimizes power usage, ensuring low energy consumption.
  • Robust Design: Built to withstand harsh environments, extending the product life.
  • Compact Size: Facilitates easy integration into space-constrained systems.

Additional Details

The EZA-DT43AAAJ incorporates cutting-edge technology to deliver superior performance, supported by rigorous quality control to ensure dependability across applications.
