Same model may have multiple batches, images only for reference.

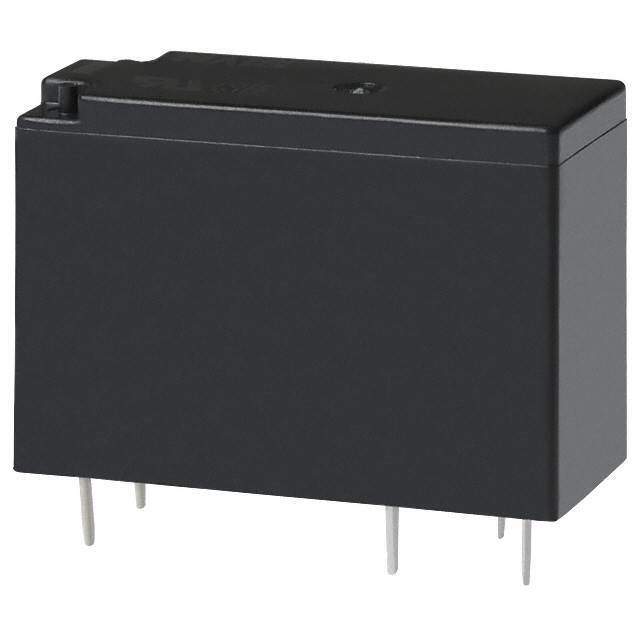

JW1FSN-B-DC9V Real Image
Same model may have multiple batches, images only for reference.

JW1FSN-B-DC9V

Part No JW1FSN-B-DC9V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 10A 9V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Panasonic Electric Works
Packaging Bulk
Mounting Style Through Hole
Coil Voltage 9VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 10A
Switching Voltage 250VAC, 30VDC - Max
Coil Current 58mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Coil Insulation Class B
Must Operate Voltage 6.3 VDC
Must Release Voltage 0.9 VDC
Operate Time 15ms
Release Time 5ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Nickel (AgNi)
Relay Type General Purpose
Coil Resistance 155 Ohms
Manufacturer Pack Quantity 100
MSL Level Not Applicable
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 806209-JW1FSN-B-DC9V
Ultra Librarian 3D Model Ultra Librarian JW1FSN-B-DC9V CAD Model

Description

The Panasonic JW1FSN-B-DC9V is a through-hole mounted general-purpose relay with a contact form of SPDT (1 Form C).

  • Coil Voltage: 9VDC
  • Coil Resistance: 155 Ohms
  • Switching Voltage: 250VAC and 30VDC
  • Contact Material: silver nickel (AgNi)
  • Contact Rating: 10A
  • Seal Rating: sealed - fully
  • Temperature Range: -40°C to 85°C
  • Popularity: Medium
