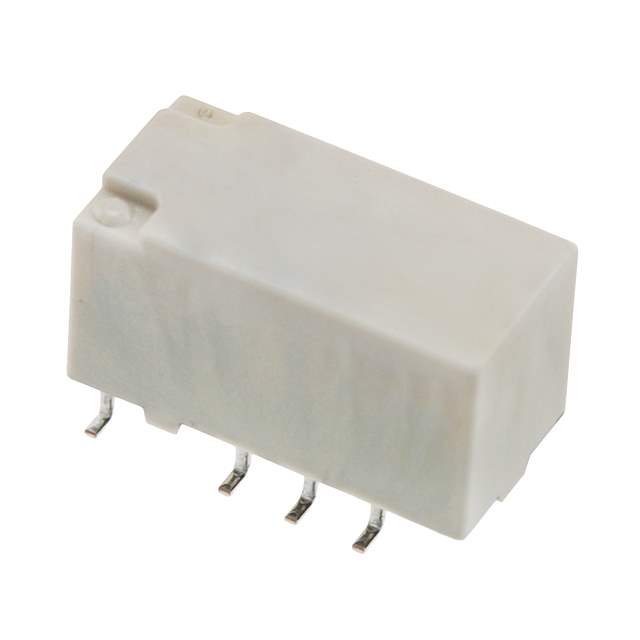

TX2SA-9V-Z Real Image
Same model may have multiple batches, images only for reference.

TX2SA-9V-Z

Part No TX2SA-9V-Z
Manufacturer Panasonic
Catalog Signal Relays, Up to 2 Amps
Description RELAY TELECOM DPDT 2A 9V
Datasheet
TX2SA-9V-Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Reel - TR
Status Active
Relay Type Telecom
Coil Type Non Latching
Coil Current 15.5mA
Coil Voltage 9VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 2A
Switching Voltage 220VDC - Max
Turn On Voltage (Max) 6.75 VDC
Turn Off Voltage (Min) 0.9 VDC
Operate Time 4ms
Release Time 4ms
Features Sealed - Fully
Mounting SMD (SMT)
Termination Style Gull Wing
Coil Power 140 mW
Coil Resistance 579 Ohms
Temperature Range - Operating -40°C to 85°C
Win Source Part Number 383913-TX2SA-9V-Z
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian TX2SA-9V-Z CAD Model

Description

The TX2SA-9V-Z is a DPDT (2 Form C) telecom relay manufactured by Panasonic Electric Works. The device is sealed fully and has a gull-wing termination style.

  • Termination Style: Gull-wing
  • Mounting: Surface-mount device
  • Coil Resistance: 579 Ohms
  • Coil Current: 15.5mA
  • Operate Time: 4ms
  • Release Time: 4ms
  • Switching Voltage: 220VDC - Max
  • Turn-on Voltage (Max): 6.75 VDC
  • Turn-off Voltage (Min): 0.9 VDC
  • Contact Rating (current): 2A
  • Coil Power: 140mW
  • Operating Temperature Range: -40°C to 85°C
  • Category: Relays
