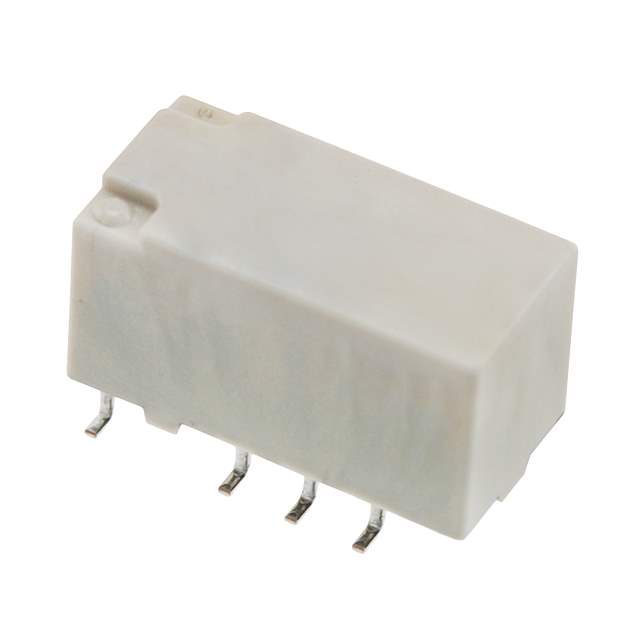

TX2SS-3V-Z

Part No TX2SS-3V-Z
Manufacturer Panasonic
Catalog Signal Relays, Up to 2 Amps
Description RELAY TELECOM DPDT 2A 3V
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Reel - TR
Status Active
Relay Type Telecom
Coil Type Non Latching
Coil Current 46.7mA
Coil Voltage 3VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 2A
Switching Voltage 220VDC - Max
Turn On Voltage (Max) 2.25 VDC
Turn Off Voltage (Min) 0.3 VDC
Operate Time 4ms
Release Time 4ms
Features Sealed - Fully
Mounting SMD (SMT)
Termination Style Gull Wing
Coil Power 140 mW
Coil Resistance 64.3 Ohms
Temperature Range - Operating -40°C to 85°C
Win Source Part Number 137251-TX2SS-3V-Z
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian TX2SS-3V-Z CAD Model

Description

The TX2SS-3V-Z is a miniature signal relay produced by Panasonic, belonging to the TX series, known for its compact size, high sensitivity, and robust switching capabilities. This relay is particularly suited for applications where space is limited and reliable switching is essential.

Applications

  • Telecommunications Equipment: Used in telecommunications systems for signal routing and switching.
  • Industrial Control Systems: Employed in programmable logic controllers (PLCs) and other industrial automation equipment.
  • Measurement and Instrumentation: Found in test and measurement instruments for accurate signal control.
  • Medical Devices: Utilized in portable medical devices and monitoring equipment.
  • Consumer Electronics: Integrated into various consumer electronics, including audio-visual equipment and home appliances.

Features

  • Compact Size: Miniature design enables high-density mounting on printed circuit boards (PCBs).
  • High Sensitivity: Low coil power consumption ensures energy efficiency.
  • High Switching Capacity: Capable of switching loads up to 2A at 30VDC.
  • Sealed Construction: Provides protection against dust, moisture, and other environmental contaminants.
  • DPDT Contact Configuration: Offers versatile switching options with Double Pole Double Throw contacts.

Benefits

  • Space Savings: Facilitates the miniaturization of electronic devices.
  • Energy Efficiency: Reduces power consumption and minimizes heat generation.
  • Reliable Switching: Ensures consistent and dependable performance over a long operational life.
  • Environmental Protection: Sealed construction enhances durability and reliability in harsh environments.
  • Versatile Applications: Suitable for a broad range of applications requiring reliable signal switching.

Additional Details

The TX2SS-3V-Z features a DPDT (Double Pole Double Throw) contact arrangement. The 3VDC coil voltage allows for direct connection to digital circuits. The “Z” suffix typically refers to a specific terminal or packaging option related to the mounting configuration. Contact material consists of a gold-clad silver alloy. Standard operating temperature ranges from -40°C to +85°C. The dielectric strength, or isolation voltage, between the coil and contacts, usually falls in the 1500 VAC to 2000 VAC range. This relay is suitable for through-hole mounting on printed circuit boards (PCBs).
