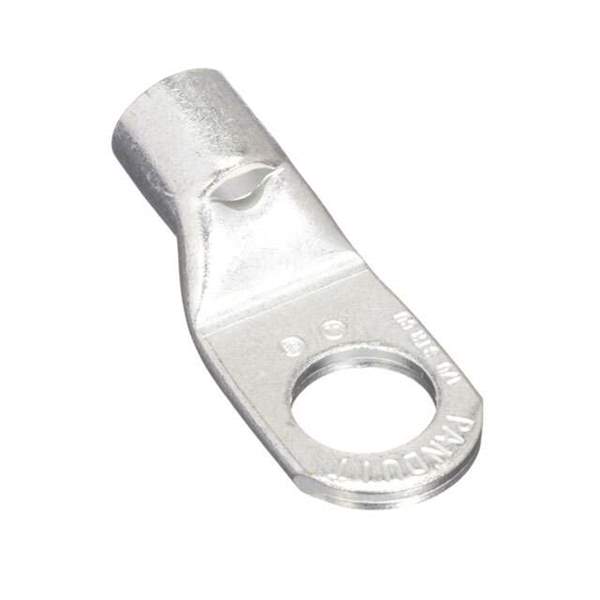

S4/0-38R-C Real Image
Same model may have multiple batches, images only for reference.

S4/0-38R-C

Part No S4/0-38R-C
Manufacturer Panduit Corp
Catalog Terminals
Datasheet
S4/0-38R-C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals - Ring Connectors
Mfr Panduit Corp
Series Pan-Term®
Package Bulk
Product Status Obsolete
Terminal Type Flat Sided
Stud/Tab Size 3/8 Stud
Thickness 0.140" (3.56mm)
Width - Outer Edges 1.060" (26.92mm)
Length - Overall 2.300" (58.42mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp, Funnel Opening
Wire Gauge 4/0 AWG
Insulation Non-Insulated
Contact Material Copper
Contact Finish Tin
Other Names S4/0-38R-C,298-15786
Standard Package 100
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1285160-S4/0-38R-C
Ultra Librarian 3D Model Ultra Librarian S4/0-38R-C CAD Model

Description

The 1285160-S4/0-38R-C is a connector terminal manufactured by Panduit Corp.

  • Terminal Type: Flat-Sided
  • Stud Size: 3/8 stud
  • Wire Gauge: 4/0 AWG
  • Insulation: Non-Insulated
  • Termination: Crimp, funnel opening
  • Thickness: 0.140" (3.56mm)
  • Width: 1.060" (26.92mm)
  • Length: 2.300" (58.42mm)
  • Standard Package: 100 units
