The SS3020HE is a Schottky Barrier Rectifier manufactured by Panjit. It's designed for high-efficiency rectification in applications such as switching power supplies, DC-DC converters, and freewheeling diodes. This device boasts a low forward voltage drop, high surge current capability, and excellent thermal characteristics, ensuring reliable performance in demanding environments.

Applications

• Switching Power Supplies (SMPS): Rectifying output voltage for increased efficiency.
• DC-DC Converters: Efficiently converting voltage levels.
• Freewheeling Diodes: Protecting inductive loads from voltage spikes.
• Polarity Protection: Preventing reverse polarity damage to circuits.

Features

• Low Forward Voltage Drop (VF): Minimizes power loss and improves efficiency.
• High Surge Current Capability: Withstands transient current surges.
• High-Temperature Stability: Maintains stable performance at elevated temperatures.
• Surface Mount Package: Facilitates automated assembly.
• RoHS Compliant: Environmentally friendly, lead-free design.

Benefits

• Increased Efficiency: Reduces power dissipation in the circuit.
• Robust Performance: Ensures reliable operation under various conditions.
• Compact Design: Allows for use in space-constrained applications.
• Simplified Assembly: Streamlines the manufacturing process.

Additional Details

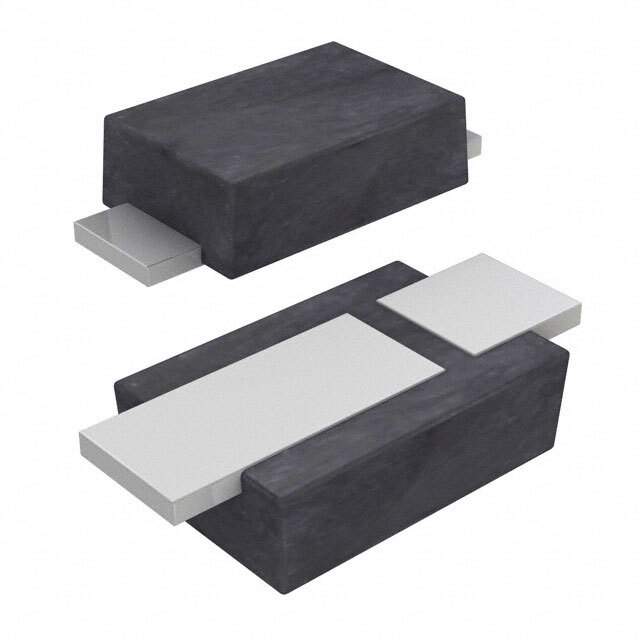

The SS3020HE is typically packaged in a TO-277 (SMPC) package. Key parameters include maximum repetitive peak reverse voltage (VRRM), average forward current (IF(AV)), and forward voltage (VF). The low forward voltage drop is crucial for Schottky rectifiers, as it directly affects efficiency. The high surge current capability ensures the diode can handle transient conditions without failure. The TO-277 package offers good thermal performance, allowing the diode to operate at higher currents and temperatures.

This Schottky Barrier Rectifier is commonly used in modern electronic devices where efficiency and reliability are critical. Its surface-mount design enables automated assembly, reducing manufacturing costs. The SS3020HE from Panjit provides a robust solution for various rectification needs, combining high performance with environmental compliance. Its electrical specifications and package style make it well-suited for power management applications where minimizing power loss and maximizing reliability are essential.
