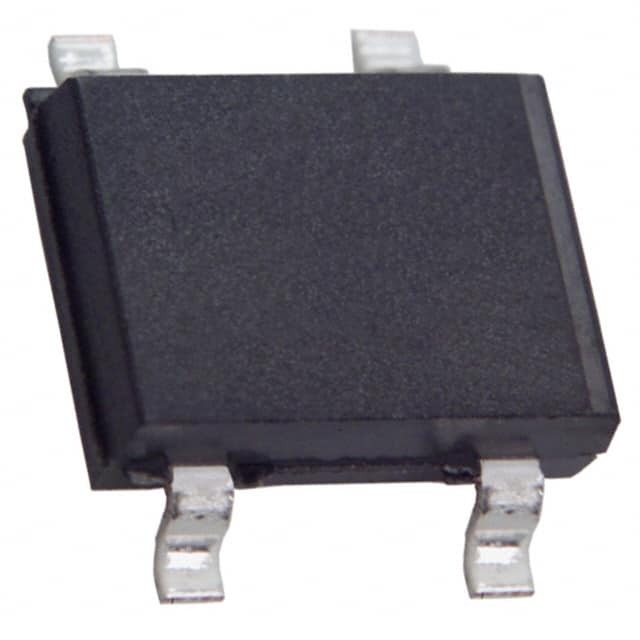

Same model may have multiple batches, images only for reference.
TS2100S_R1_00001 Panjit
Same model may have multiple batches, images only for reference.

TS2100S_R1_00001

Part No TS2100S_R1_00001
Manufacturer Panjit
Catalog Bridge Rectifiers
Description TDI, SKY  /  Bridge Rectifier Single Phase Schottky 100 V Surface Mount 4-MicroDIP/SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Bridge Rectifiers
Mfr Panjit International Inc.
Package Tape & Reel
Diode Type Single Phase
Technology Schottky
Voltage - Peak Reverse (Max) 100 V
Current - Average Rectified (Io) 2 A
Voltage - Forward (Vf) (Max) @ If 840 mV @ 2 A
Current - Reverse Leakage @ Vr 4 µA @ 100 V
Temperature Range - Operating -55°C ~ 125°C (TJ)
Mounting SMD (SMT)
Package / Case 4-SMD, Gull Wing
Supplier Device Package 4-MicroDIP/SMD
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Names 3757-TS2100S_R1_00001DKR,3757-TS2100S_R1_00001TR,3757-TS2100S_R1_00001CT
Standard Package 1,000
Win Source Part Number 1152684-TS2100S_R1_00001
Ultra Librarian 3D Model Ultra Librarian TS2100S_R1_00001 CAD Model

Description

The Panjit International Inc. TS2100S_R1_00001 is a high-quality bridge rectifier designed for use in discrete semiconductor products.

  • Diode Type: Schottky, Single Phase
  • Current Average Rectified (Io): 2A
  • Voltage Forward (Vf): 840mV @ 2A
  • Current Reverse Leakage: 4µA @ 100V
  • Voltage Peak Reverse: 100V
  • Package: 4-SMD, Gull Wing
  • Supplier Device Package: 4-MicroDIP/SMD
  • Operating Temperature: -55°C to 125°C (TJ)
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • HTSUS Code: 8541.10.0080
