The UF804F is an ultrafast recovery rectifier manufactured by Panjit. It's designed for high-efficiency applications requiring rapid switching. The 'F' suffix typically indicates a specific package type, often an isolated or fully insulated package.

Applications

• Switching Mode Power Supplies (SMPS)
• Power Inverters
• DC-DC Converters
• Freewheeling Diodes in Inductive Loads
• Power Factor Correction (PFC) Circuits

Features

• Ultrafast Reverse Recovery Time
• Low Forward Voltage Drop
• High Surge Current Capability
• Isolated Package (typically TO-220F)
• High Reliability
• RoHS Compliant

Benefits

• Improved efficiency in high-frequency switching applications
• Reduced power dissipation leading to cooler operation
• Enhanced system robustness against transient surges
• Simplified heatsinking due to isolated package
• Long service life

Additional Details

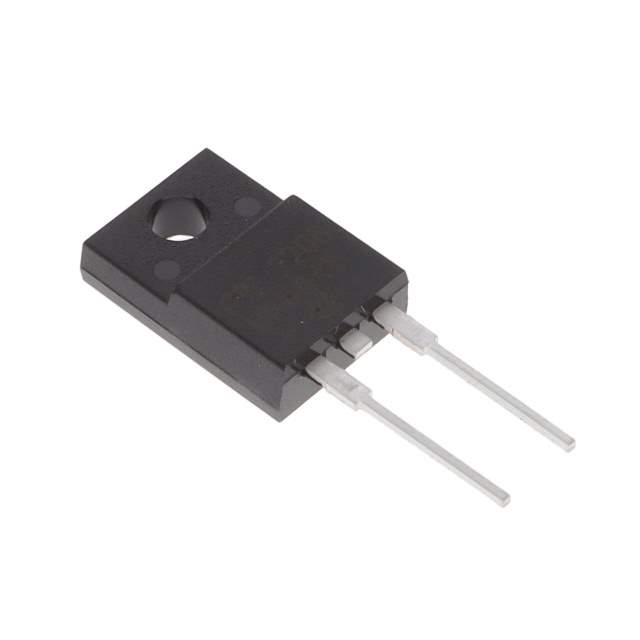

The UF804F is commonly available in a TO-220F package, which provides electrical isolation from the heatsink. Key electrical specifications include a repetitive peak reverse voltage (VRRM) of 400V, a maximum average forward rectified current (IF(AV)) of 8.0A, and a typical forward voltage drop (VF) of approximately 1.3 V. The ultrafast recovery time (trr) is a critical parameter, typically in the range of tens of nanoseconds. This ensures minimal reverse recovery losses during switching, contributing to improved efficiency, especially in high-frequency circuits. The high surge current capability allows it to withstand transient surges without damage, making it suitable for demanding applications. The electrically isolated TO-220F package simplifies heatsinking and enhances safety.

This ultrafast recovery rectifier is designed for use in a wide range of power electronics applications where efficiency, fast switching, and electrical isolation are crucial. The low forward voltage drop also helps minimize power dissipation, further contributing to the overall efficiency of the system. The isolated TO-220F package is particularly beneficial in applications where electrical isolation between the device and the heatsink is required for safety or functional reasons. The combination of ultrafast recovery, high surge current capability, and isolation makes this component a robust and reliable choice for demanding power electronics designs.
