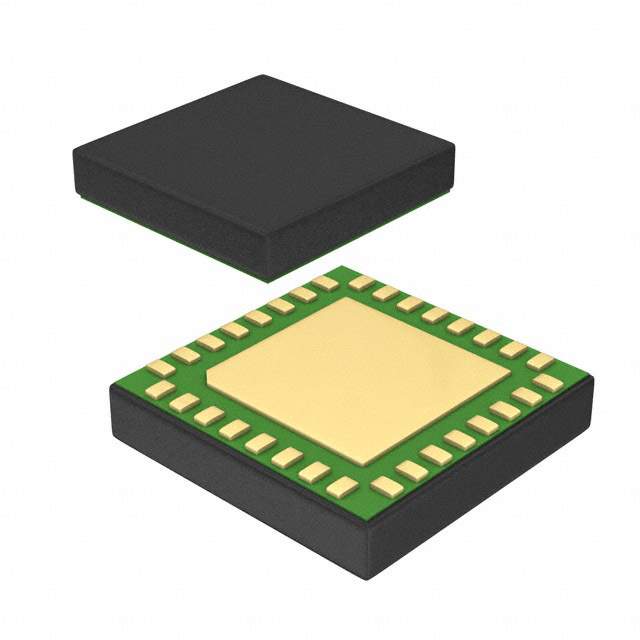

PE42540LGBC-Z Real Image PE42540LGBC-Z real image
Same model may have multiple batches, images only for reference.
PE42540LGBC-Z Real Image PE42540LGBC-Z real image
PE42540LGBC-Z Real Image PE42540LGBC-Z real image
Same model may have multiple batches, images only for reference.

PE42540LGBC-Z

Part No PE42540LGBC-Z
Manufacturer Peregrine Semiconductor
Catalog RF Switches
Description UltraCMOS SP4T RF Switch
Datasheet
PE42540LGBC-Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Peregrine Semiconductor
Series UltraCMOS, HaRP
Packaging Reel - TR
Part Status Obsolete(EOL)
Frequency - Lower 10Hz
Frequency - Upper 8GHz
Isolation @ Frequency 31dB @ 8GHz (typ)
Insertion Loss @ Frequency 1.2dB @ 8GHz
IIP3 58dBm (typ)
Topology Absorptive
Circuit SP4T
P1dB 33dBm (typ) IP1dB
Features DC Blocked
Impedance 50 Ohm
Operating Temperature Range -40°C ~ 85°C
Operating Supply Voltage 3 V ~ 3.55 V
RF Type ATE, ISM, PHS, UMTS, WLL
Package 32-TFQFN Exposed Pad
Manufacturer Package 32-LGA (5x5)
Win Source Part Number 1236779-PE42540LGBC-Z
Manufacturer Homepage www.peregrine-semi.com
Family Name PE42540
Introduction Date June 14, 2012
Estimated EOL Date 2026
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PE42540LGBC-Z CAD Model

Description

The Peregrine Semiconductor PE42540LGBC-Z is a DC blocked SP4T absorptive switch designed for ATE, ISM, PHS, UMTS, and WLL applications.

  • Impedance: 50 Ohm
  • Frequency Range: 10Hz to 8GHz
  • Isolation @ 8GHz: 31dB
  • Insertion Loss @ 8GHz: 1.2dB
  • IIP3: 58dBm (typ)
  • P1dB IP1dB: 33dBm (typ)
  • Package: 32-TFQFN Exposed Pad
  • Operating Supply Voltage: 3V to 3.55V
  • Estimated EOL Date: 2026
