Same model may have multiple batches, images only for reference.

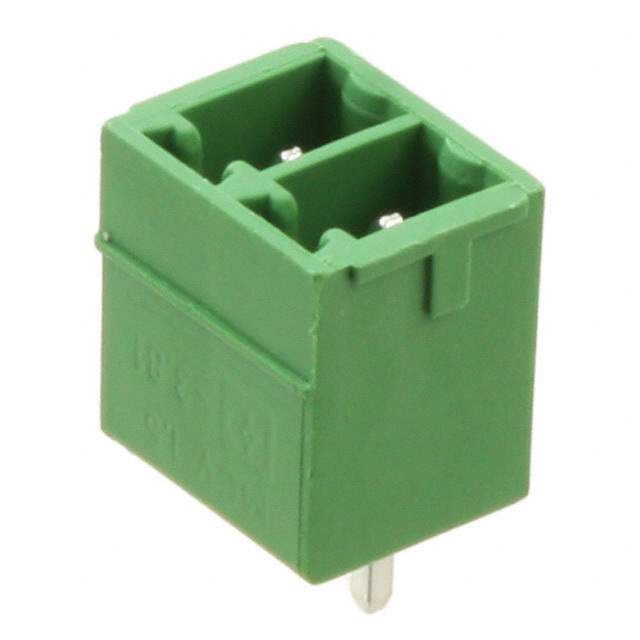

1803426 Real Image
Same model may have multiple batches, images only for reference.

1803426

Part No 1803426
Manufacturer Phoenix Contact
Catalog Headers, Plugs and Sockets
Description TERM BLOCK HDR 2POS VERT 3.81MM / 2 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.150" (3.81mm) Vertical Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminal Blocks>Headers, Plugs and Sockets
Manufacturer Phoenix Contact
Packaging Bulk
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 2
Positions Per Level 2
Number of Levels 1
Pitch 0.150" (3.81mm)
Header Orientation Vertical
Termination Style Solder
Mounting Through Hole
Current - IEC 8A
Voltage - IEC 250 V
Current - UL 8 A
Voltage - UL 300 V
Color Green
Contact Mating Finish Tin
Material Flammability Rating UL94 V-0
Housing Material Polybutylene Terephthalate (PBT)
Contact Tail Length 0.134" (3.40mm)
Insulation Height 0.362" (9.20mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number MCV 1.5/2-G-3.81,277-1221,MCV1,5/2-G-3,81
Standard Package 250
Win Source Part Number 1332270-1803426
Ultra Librarian 3D Model Ultra Librarian 1803426 CAD Model

Description

The Phoenix Contact 1332270-1803426 is a header, male pins, shrouded (4 side) component with two positions per level and a pitch of 0.150" (3.81mm).

  • Positions per Level: two
  • Pitch: 0.150" (3.81mm)
  • Current Rating: 8A
  • Voltage Rating (IEC): 250V
  • Voltage Rating (UL): 300V
  • Housing Material: polybutylene terephthalate (PBT)
  • Material Flammability Rating: UL94 V-0
  • Contact Mating Finish: tin
  • Mounting: through-hole
