Products specifications

Categories Integrated Circuits
Manufacturer Power Integrations
Packaging Tube/Rail
Status Active
Output Isolation Isolated
Internal Switch(s) Yes
Voltage - Breakdown 725V
Topology Flyback
Duty Cycle 78%
Frequency - Switching 66kHz, 132kHz
Power (Watts) 34W
Fault Protection Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit
Control Features Frequency Control
Temperature Range - Operating -40°C to 150°C (TJ)
Case / Package eDIP-12
Mounting Through Hole
Win Source Part Number 374862-TOP264VG
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TOP264VG CAD Model

Description

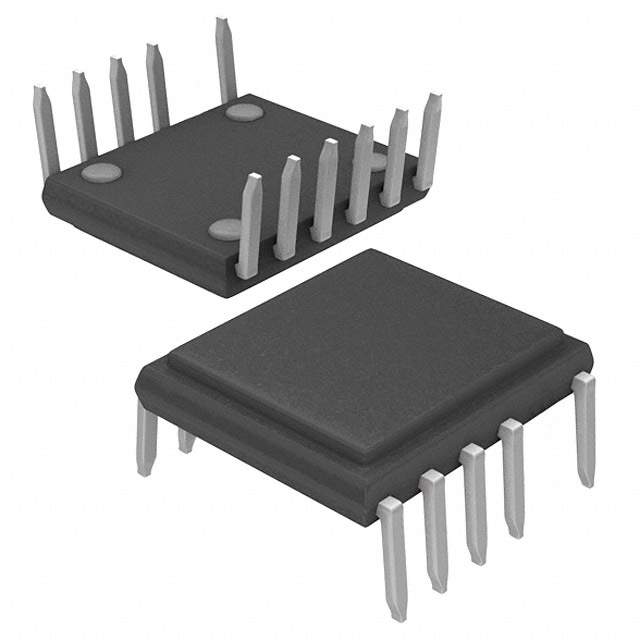

The Power Integrations 374862-TOP264VG is an isolated flyback topology integrated circuit with an internal switch.

  • Power Output: 34W
  • Voltage Breakdown: 725V
  • Switching Frequency: 66kHz and 132kHz
  • Duty Cycle: 78%
  • Fault Protections: current limiting, over load, over temperature, over voltage, and short circuit
  • Control Feature: frequency control
  • Mounting: through hole
  • Package: eDIP-12
  • Alternative parts: ICE3B2065I, ICE3A2065, and ICE2A380P2BKSA1
  • Supply and demand status: balanced
