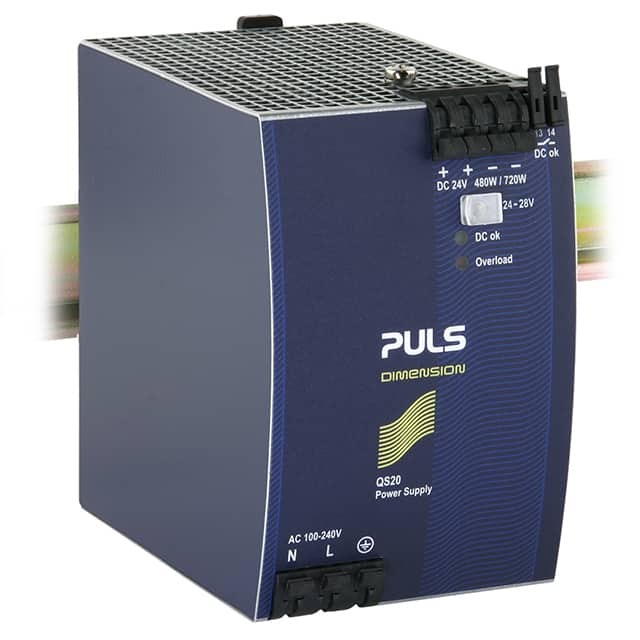

QS20.241
Same model may have multiple batches, images only for reference.

QS20.241

Part No QS20.241
Manufacturer PULS, LP
Catalog Industrial, DIN Rail Power Supplies
Description AC/DC DIN RAIL SUPPLY 24V 480W
Datasheet
QS20.241 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board) - Industrial, DIN Rail Power Supplies
Mfr PULS, LP
Series DIMENSION Q (480W)
Package Box
Product Status Active
Input Type AC
Number of Outputs 1
AC Voltage - Input 85 ~ 276 VAC
Voltage - Output 1 24V
Current - Output (Max) 20A
Power (Watts) 480W
Voltage - Isolation 500 V
Applications ITE (Commercial)
Efficiency 93.9%
Temperature Range - Operating -10°C ~ 70°C (With Derating)
Features Adjustable Output, Load Sharing, PFC
Size / Dimension 5.00" L x 3.23" W x 4.88" H (127.0mm x 82.0mm x 124.0mm)
Approval Agency ABS, CSA, DNV GL, EAC, IEC, SEMI, UL
Standard Number Class I Div 2; F47; 508; 60950-1; 61010-2-201
Base Product Number QS20
Standard Package 1 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.9530
Win Source Part Number 931164-QS20.241
Ultra Librarian 3D Model Ultra Librarian QS20.241 CAD Model

Description

The DIMENSION Q (480W) is a powerful industrial DIN rail power supply designed for various applications in the commercial sector.

  • Adjustable Output: Yes
  • Load Sharing: Yes
  • Features: Power Factor Correction (PFC)
  • Size / Dimension: 5.00" L x 3.23" W x 4.88" H (127.0mm x 82.0mm x 124.0mm)
  • Input: AC
  • Output: 24V
  • Output Current: 20A
  • Efficiency: 93.9%
  • Operating Temperature: -10°C ~ 70°C (With Derating)
  • Approvals: ABS, CSA, DNV GL, EAC, IEC, SEMI, UL
